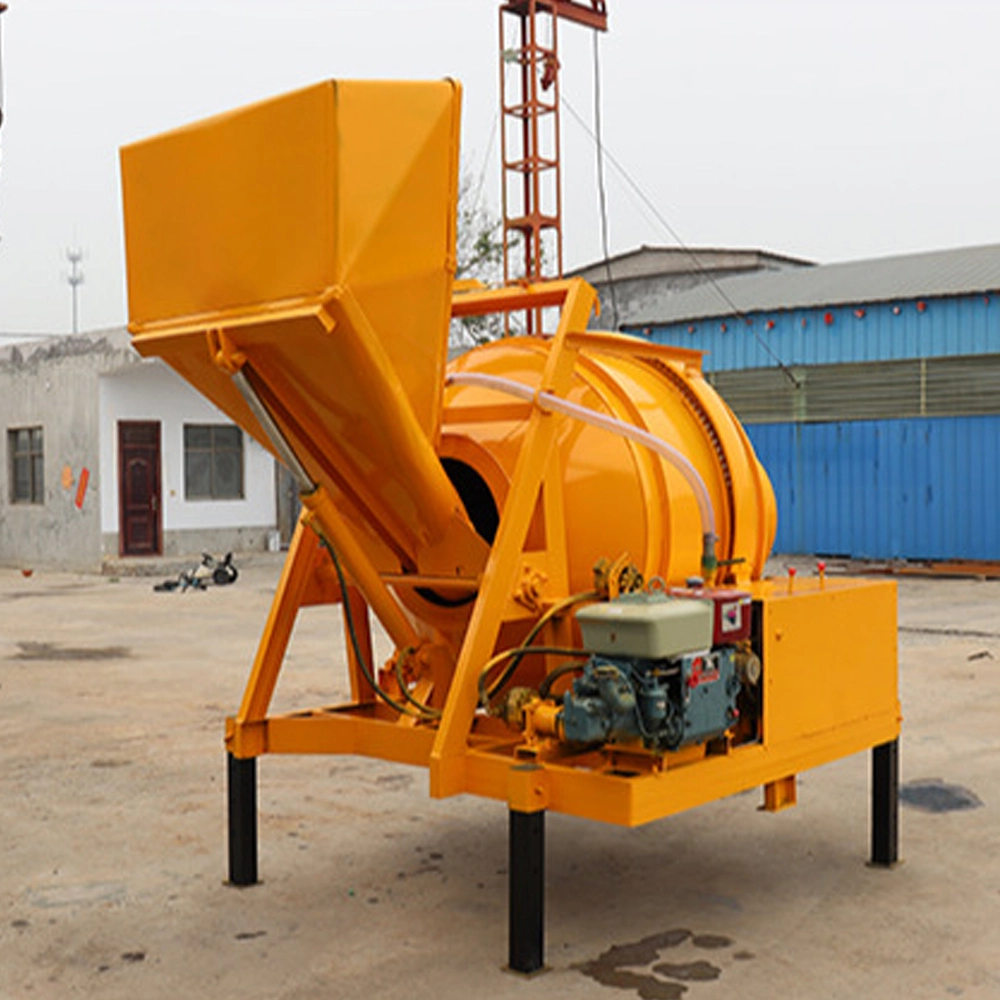

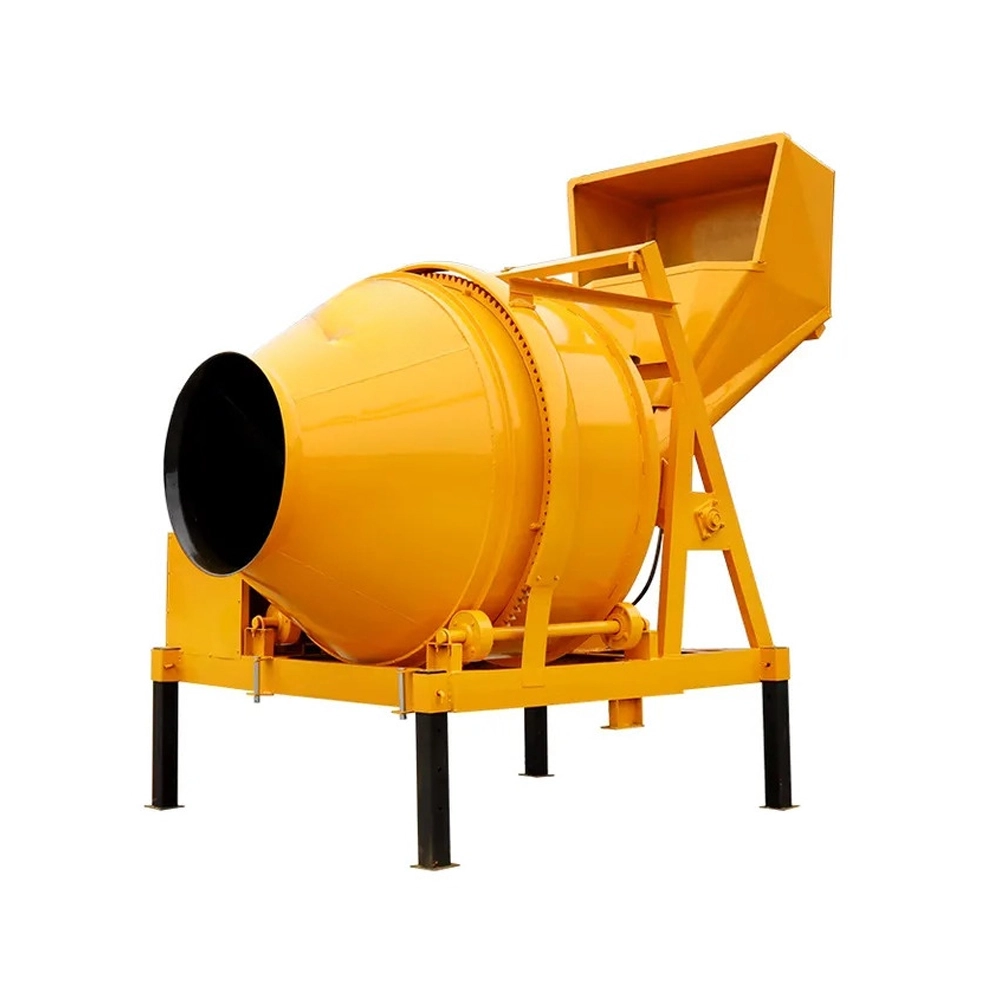

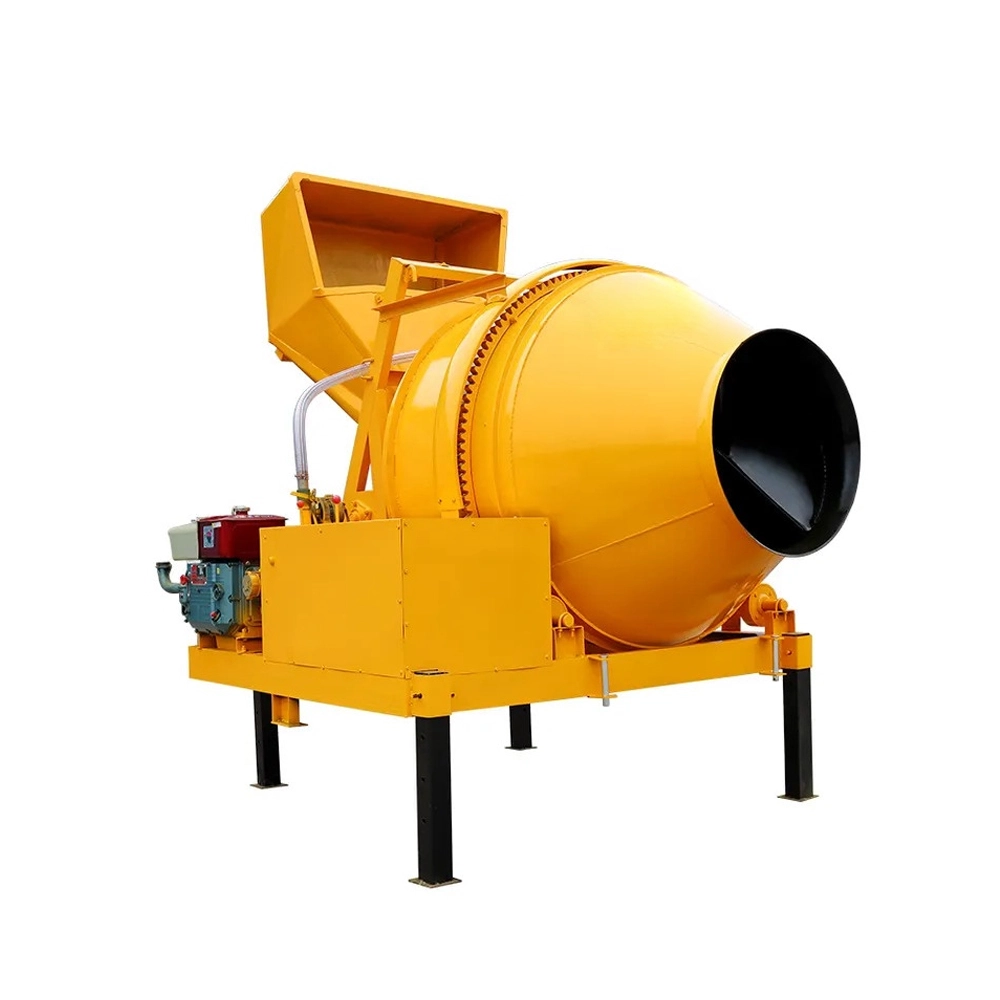

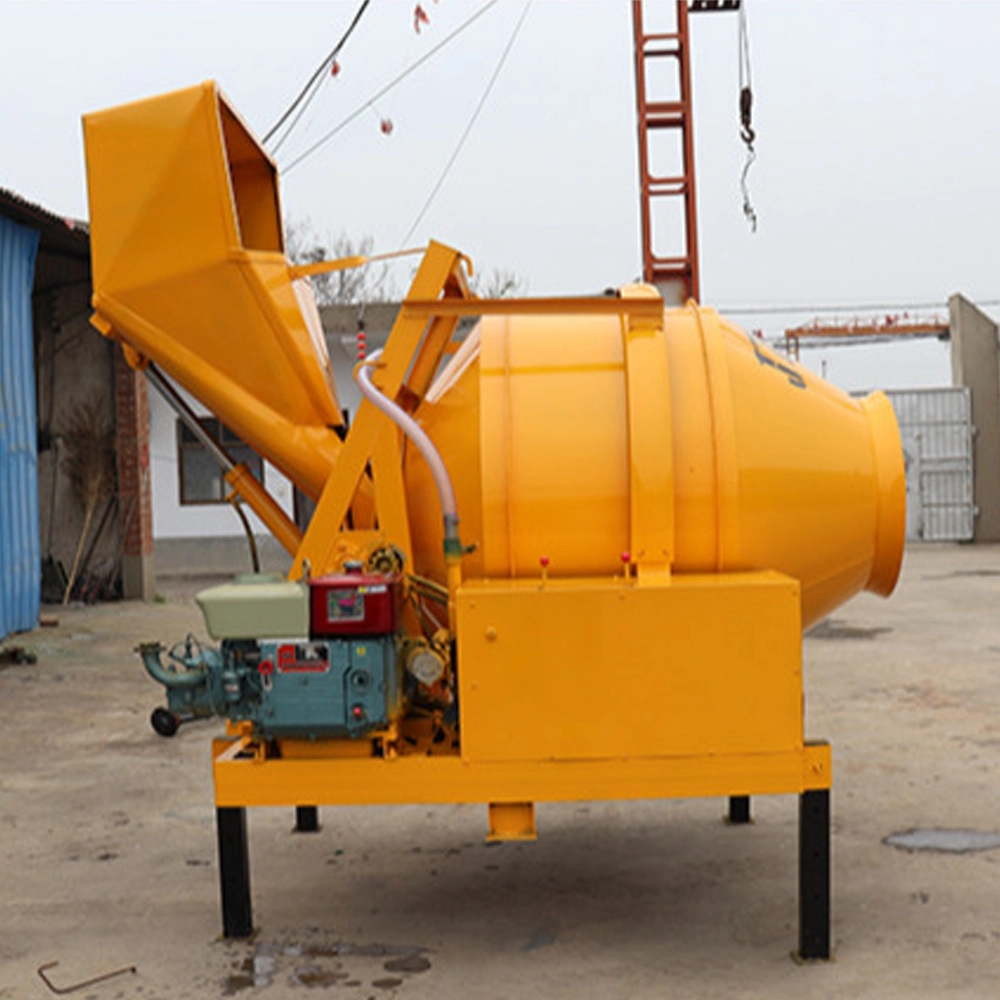

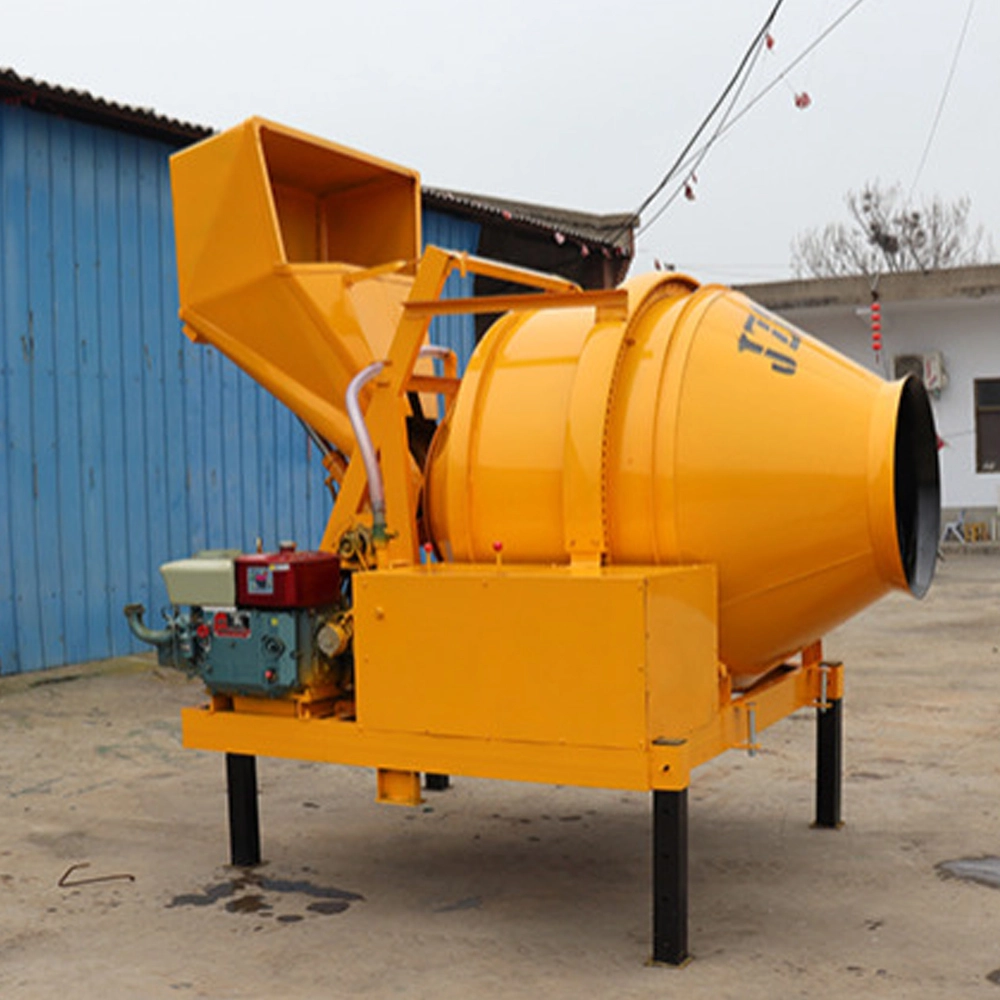

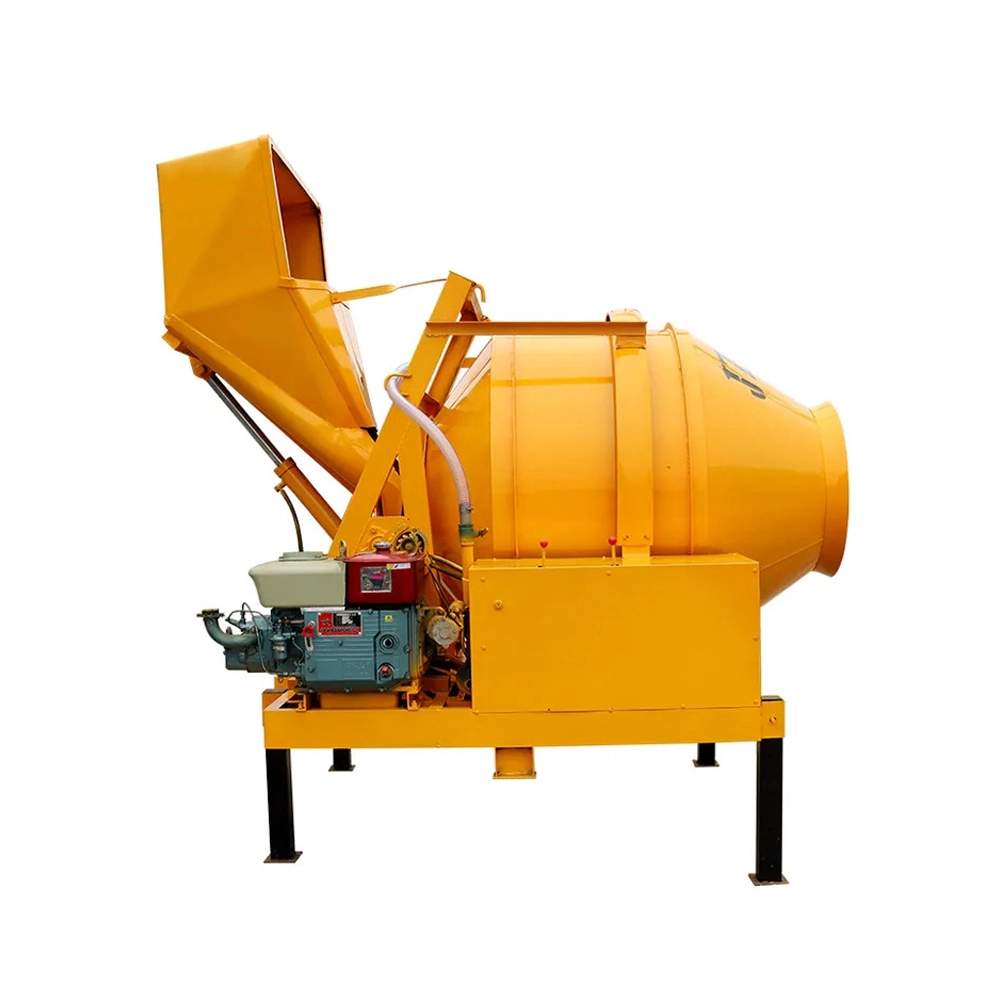

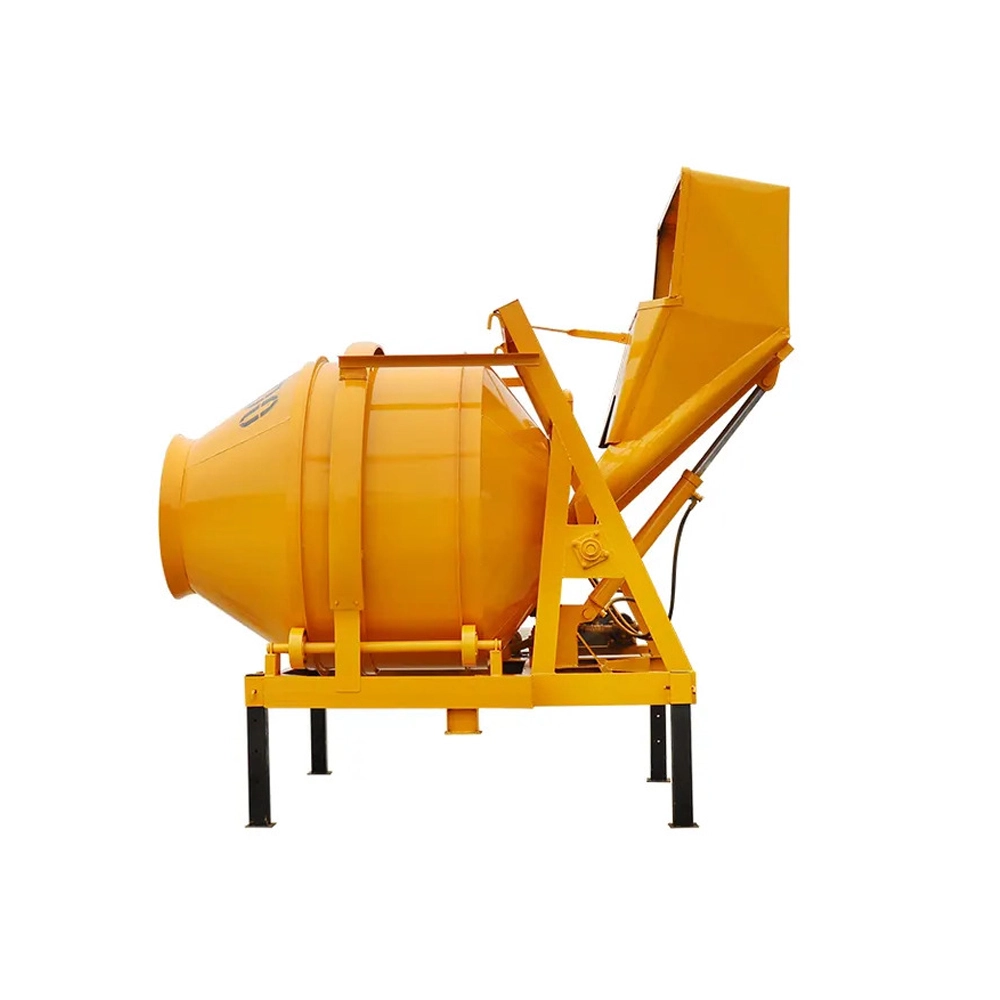

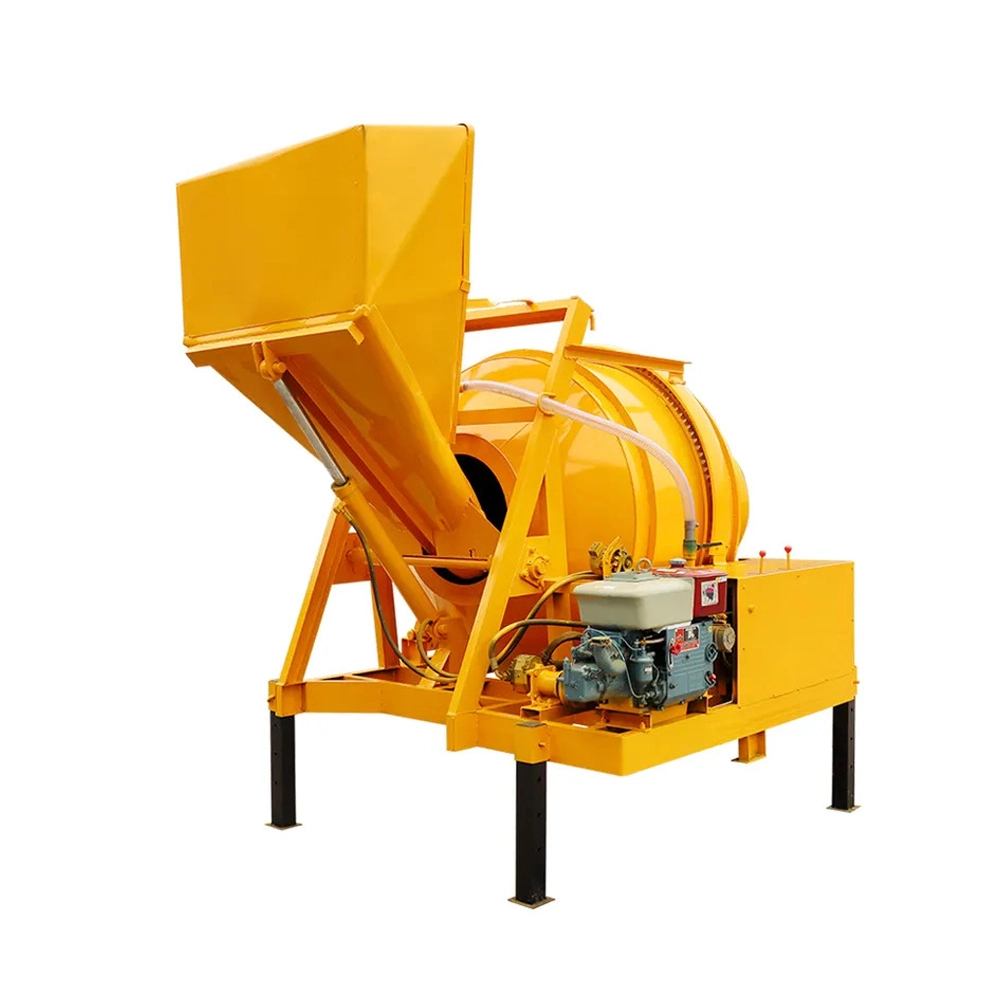

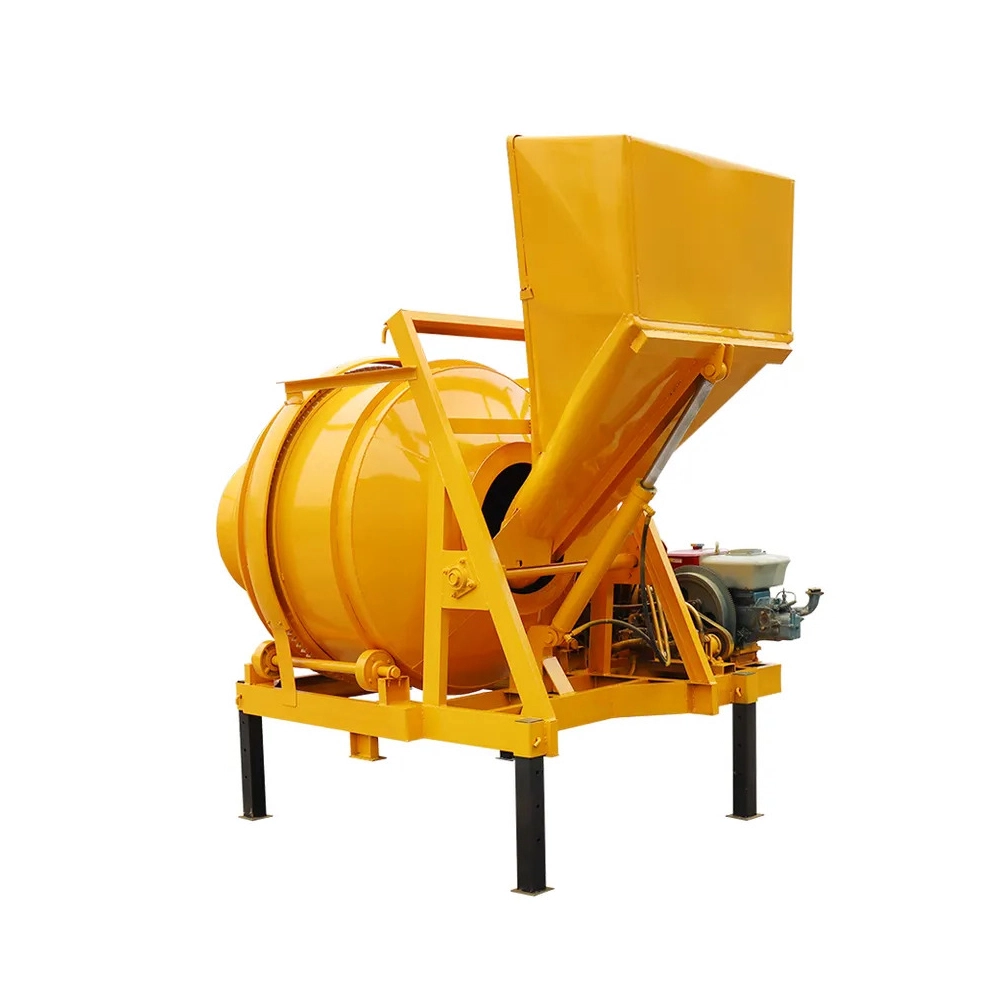

JZC Series Concrete Drum Mixer

Name: JZC Series Concrete Drum Mixer
Brand: Suzhou Minglei Construction Technology Co.,Ltd.

Minglei JZC series Fully automatic Diesel Powered self-feeding drum concrete mixer belongs to a self falling double cone reverse discharge mobile concrete mixer, which can mix plastic and semi-dry hard concrete. The mixing drum can rotate forward, mix and reverse discharge. It is suitable for general construction bases, roads, bridge works and small and medium-sized concrete component factories. During fixed mixing, a pit can be dug to make the hopper mouth flush with the ground, which is convenient for feeding and greatly reduces the labor intensity.

 

Specification of JZC Series Concrete Drum Mixer

Model	JZC-350	JZC-450	JZC-500	JZC-750
Feed capacity	560L	720L	800L	1200L
Discharge capacity	350L	450L	500L	750L
Productivity	10-14m3/h	14-18m3/h	18-20m3/h	20-25m3/h
Agitator power	5.5kw	5.5kw	7.5kw	11kw
Uplifted motor power	4.5kw	4.5kw	4.5kw	5.5kw
Pump Motor power	0.55kw	0.55kw	0.55kw	0.75lw
Drum speed	14r/min	14r/min	14r/min	14r/min
Maximum particle size	40-60mm	40-60mm	60-80mm	60-80mm
