MINGLEI Shoring Tower

Name: MINGLEI Shoring Tower
Brand: Suzhou Minglei Construction Technology Co.,Ltd.

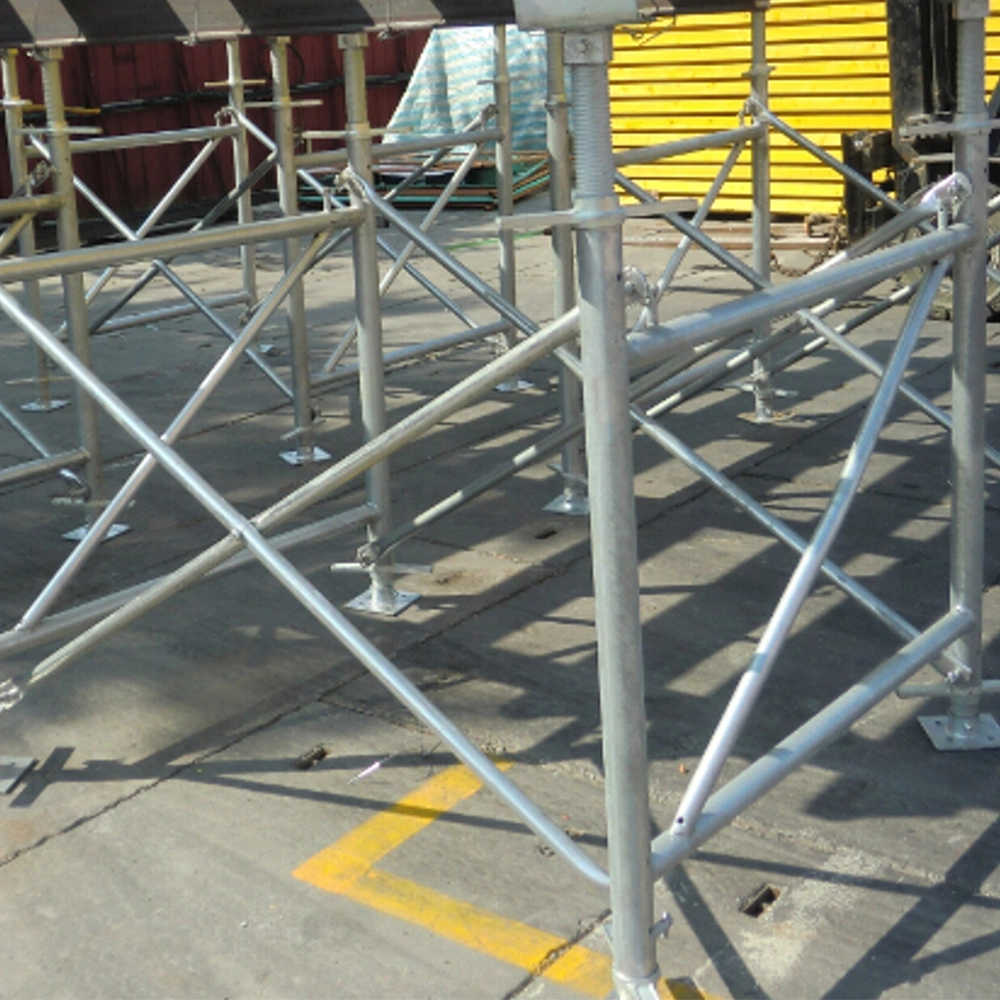

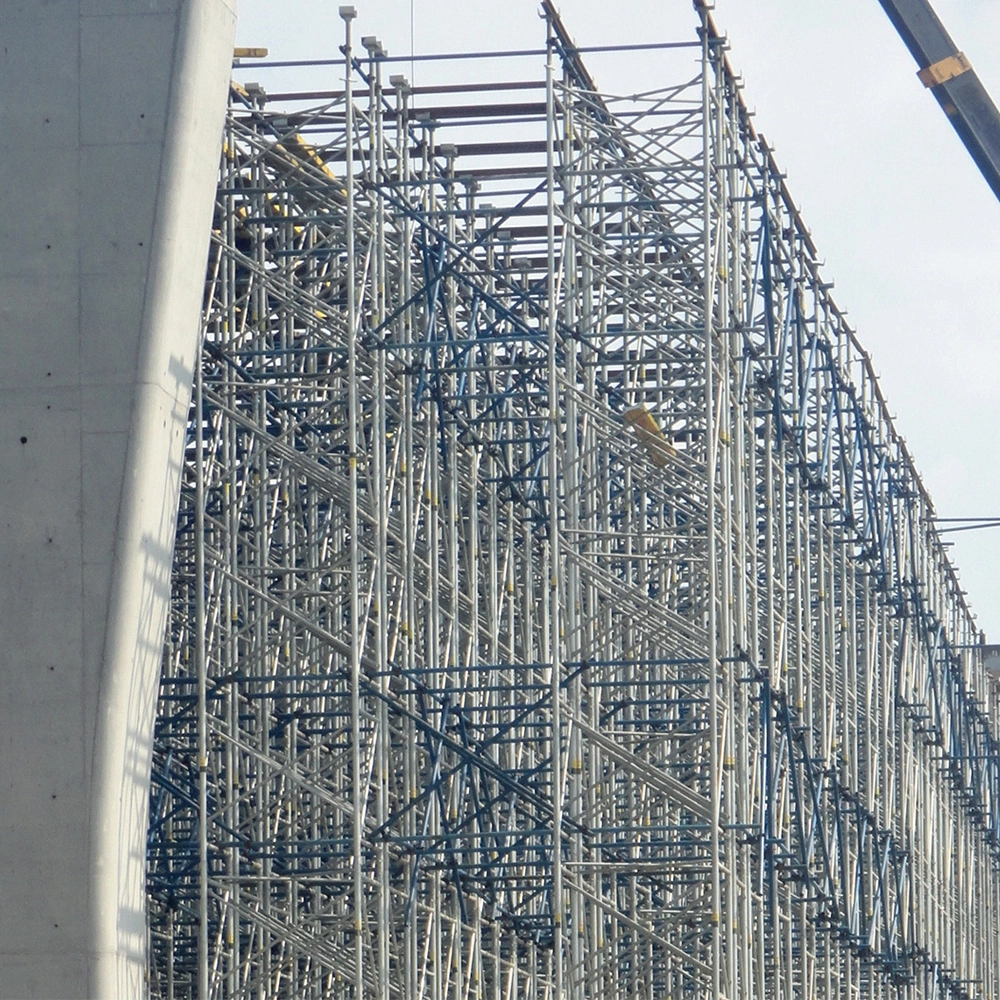

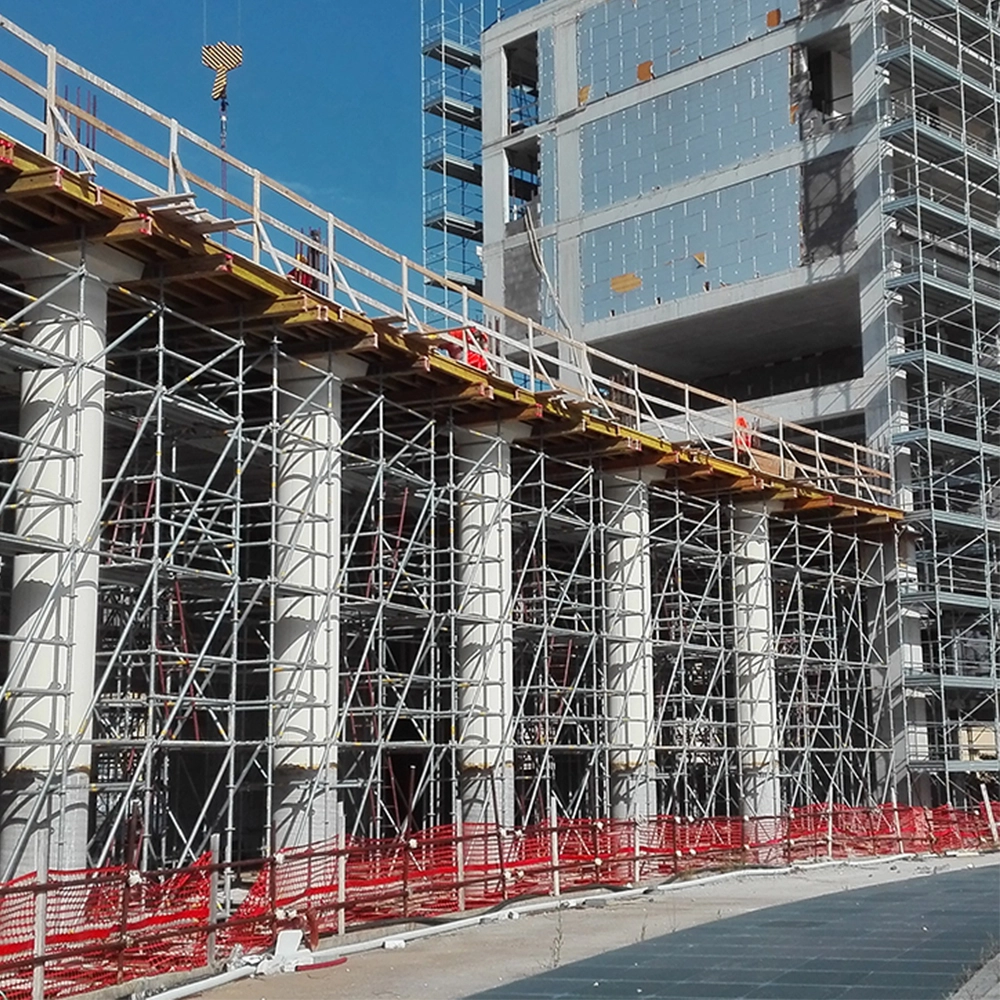

MINGLEI Shoring Tower, a rapid assembly and economical support frame system, is tailored for formwork construction. It's ideal for projects requiring high shoring and heavy loads, such as bridges, subways, and some buildings in civil engineering.

The support frames range from 1.2*1.1 m to 1.5*1.6m, allowing for adjustable heights using these dimensions and screw jacks. The frames ensure robust connectivity through vertical and horizontal diagonal bracing.

Features of MINGLEI Shoring Tower

Quick, easy assembly with minimal components.
Supports up to 60 KN per leg, including a 2.5x safety factor.
Two frame heights and adjustable jacks for diverse shoring needs.
Converts to Stairs Tower with extra accessories for added versatility.

Specification of MINGLEI Shoring Tower

Load Support	Accommodates up to 60kN per leg
Frame Dimensions	Varies from 1.20x1.10m to 1.50x1.60m for primary structures.
Longevity	lasting over 8 years.
Adjustability	Equipped with screw jack foot and head, allowing for up to 500mm in height adjustments.
Reinforcement	Secured with diagonal braces in both vertical and horizontal directions.
MINGLEI Tower Sizes	Under slab basic: 1.50m x 1.20m to 1.50m x 3.00m; Tower base: 1.00m x 1.20m; Stair module: 1.50m x 3.00m.
System Integration	Adapts to MINGLEI Slab table formwork with an anti-falling lock for secure shoring.
Transport Efficiency	Optimized for easy relocation, compatible with tower crane lifts or trolley moves for entire assemblies.
Brand Name	MINGLEI or Customized
