Suzhou Minglei Construction Technology Co.,Ltd.









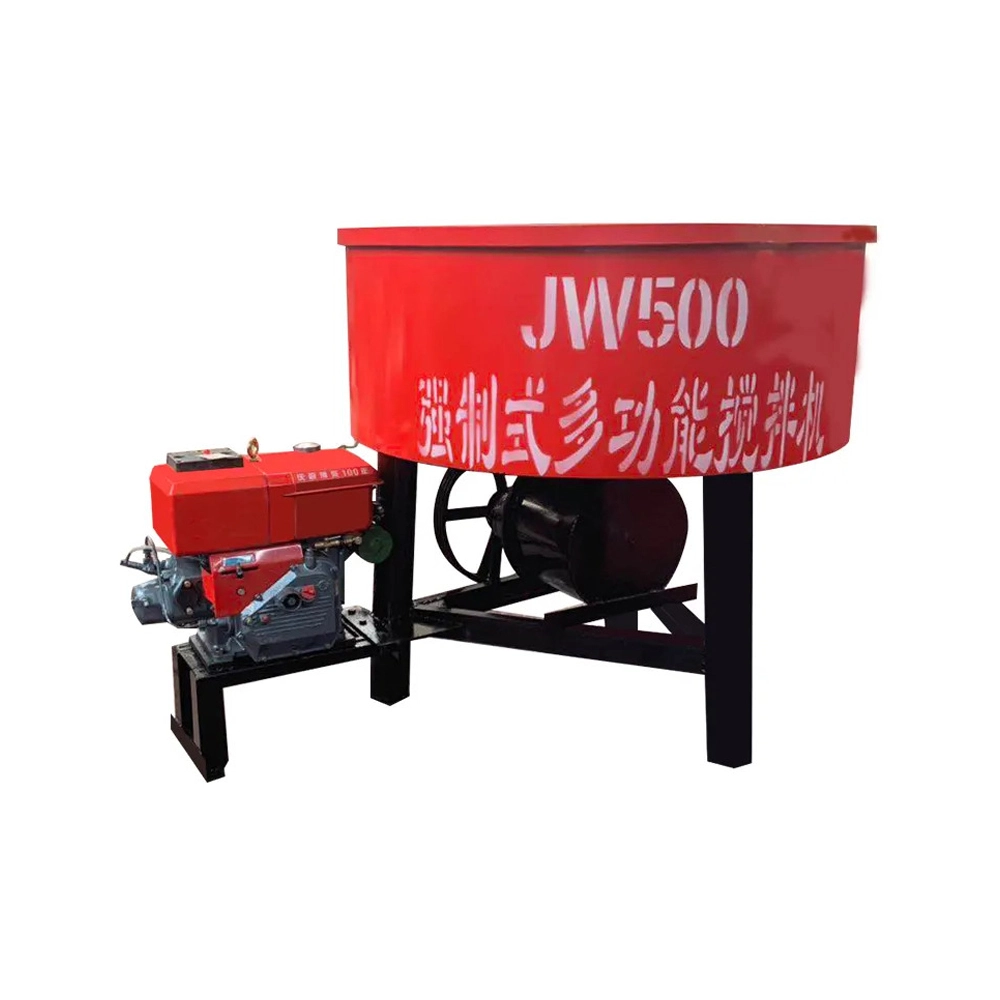

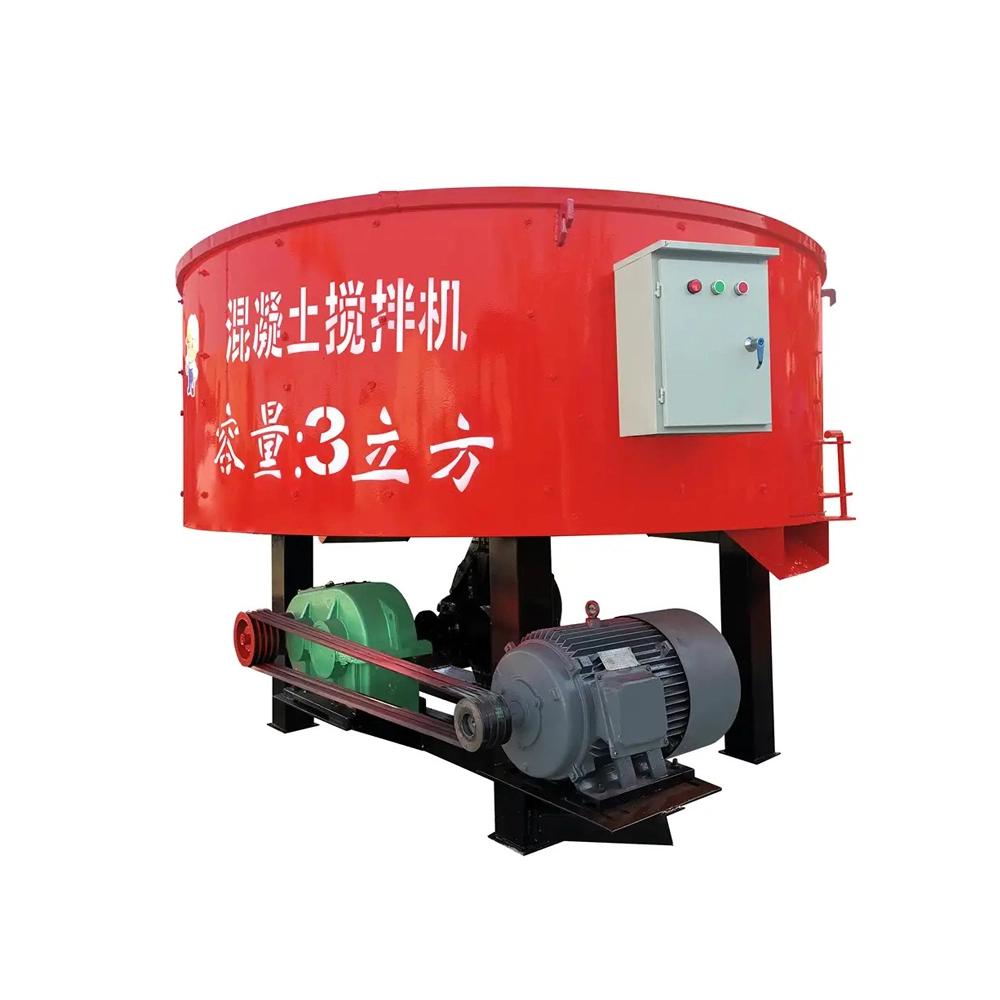

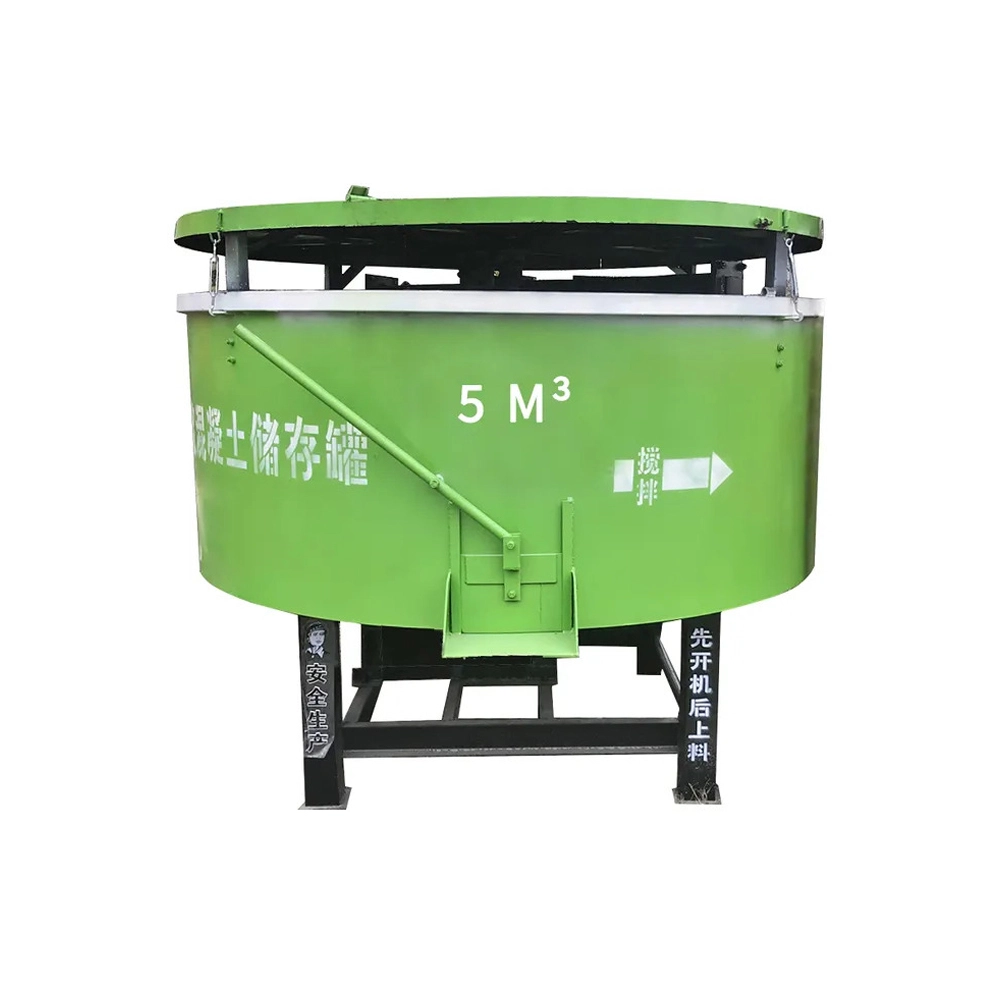

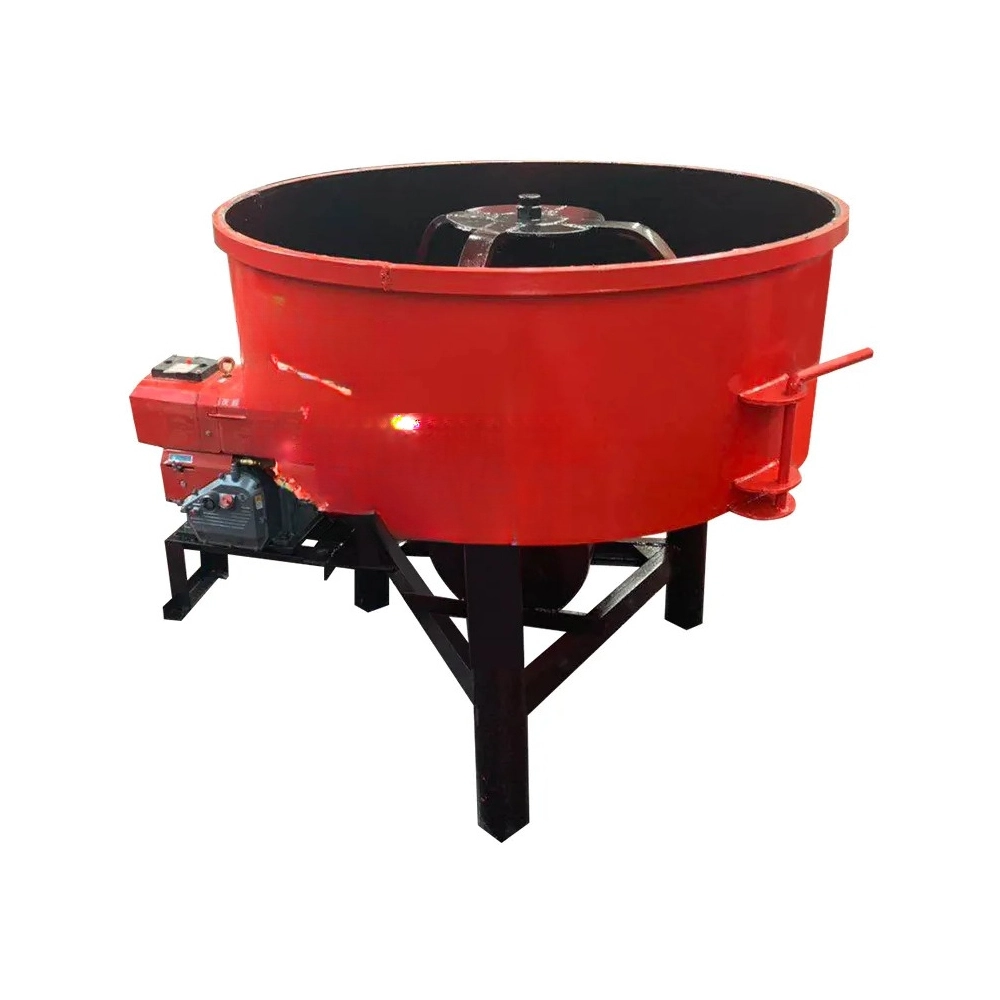

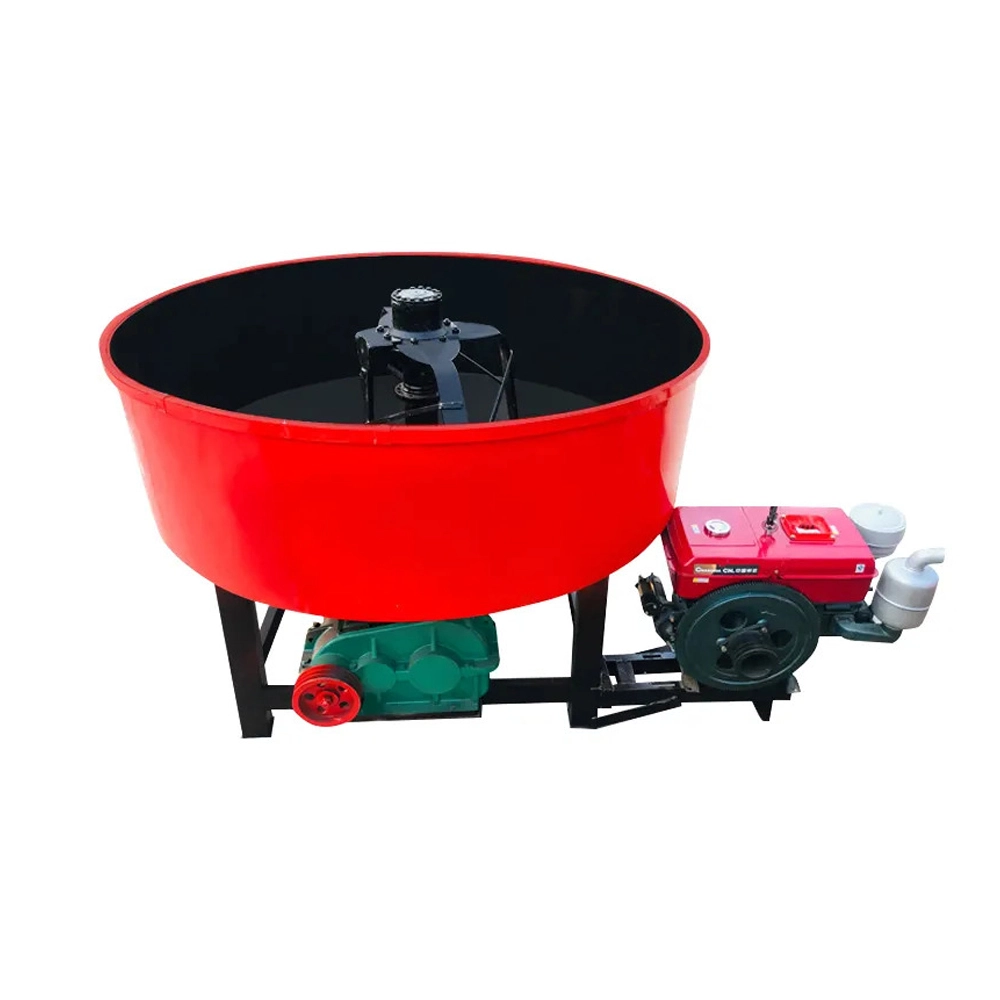

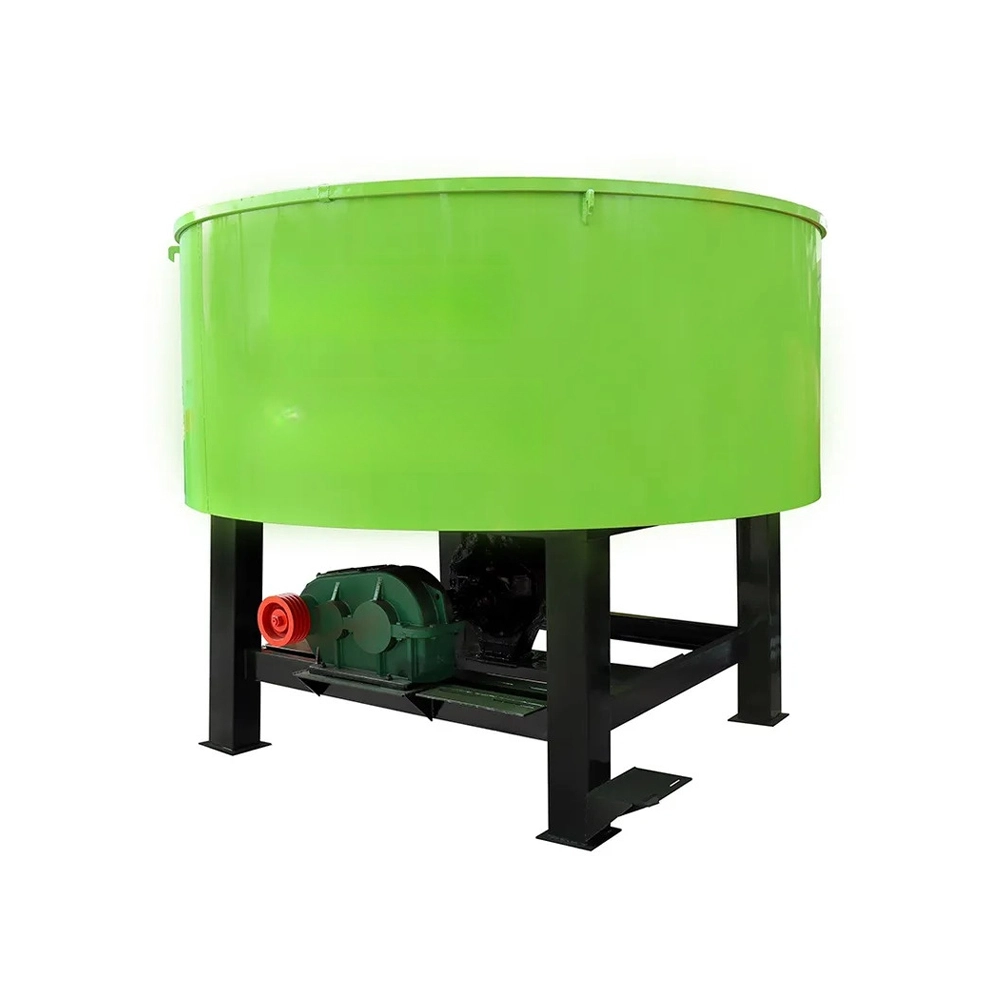

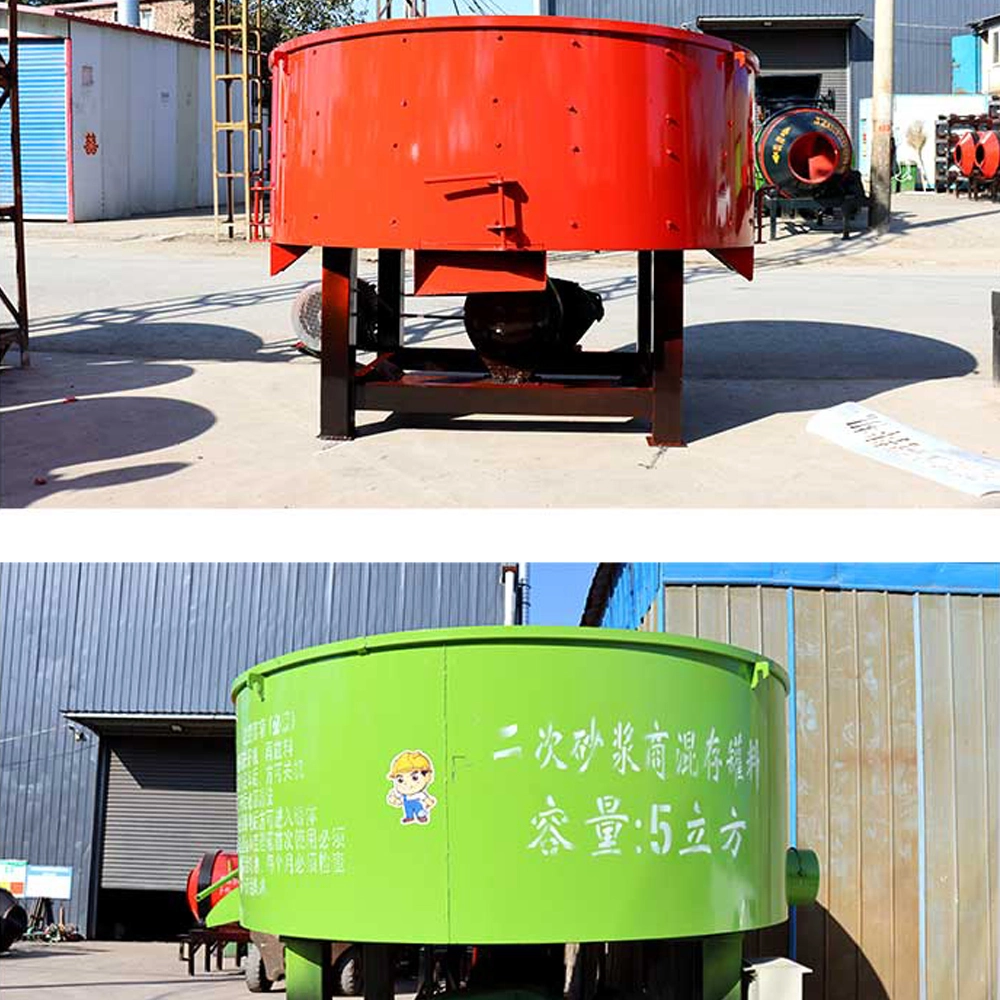

JW Series Concrete Pan Mixer

Name: JW Series Concrete Pan Mixer
Brand: Suzhou Minglei Construction Technology Co.,Ltd.

The Concrete Pan Mixer is an innovative mixer designed for both forward and reverse rotation, allowing it to efficiently handle charging, stirring, and discharging tasks in cycles. This modern mixer is ideal for a variety of applications, including general highway construction, dam projects, construction sites, the hydropower sector, mining operations, and prefabricated plants. Additionally, our concrete pan mixer is versatile enough to be used in food and drug processing facilities, with the option of stainless steel construction for hygiene and durability.

This flat-mouth mixer is capable of mixing a wide range of materials, such as plastic, dry hard concrete, liquid concrete, light aggregates, and mortar. Its adaptability makes it a valuable asset for numerous industries and projects.

 

Specification of JW Series Concrete Pan Mixer

Model	JW300	JW400	JW500	JW1000
Volume	260L	380L	530L	1000L
Feeding Volume	240L	350L	460L	900L
Discharging Volume(L)	230L	340L	440L	890L
Maximum Aggregate Diameter(mm)	40	40	40	50
Discharging Method	Automatic
Dynamic Source	Electrical/Diesel
Main Shaft Revolution (rpm)	21/35	21/35	35/45	35/45
Matched Power (KW)	4KW/5.5HP	5.5KW/7HP	7.5KW/11HP	15KW/22HP
Stirring Drum (M) (Diameter*H)	Φ0.9*0.4	Φ1.1*0.4	Φ1.3*0.4	Φ1.8*0.4
Assembly Weight (kg)	250	350	450	650
Wall thickness	4/6/8mm	4/6/8mm	4/6/8mm	6/8mm
Bottom thickness	6/8mm	6/8mm	8/10mm	10/12mm
Productivity	6-8m³/h	10/14m³/h	18/25m³/h	38/45m³/h
