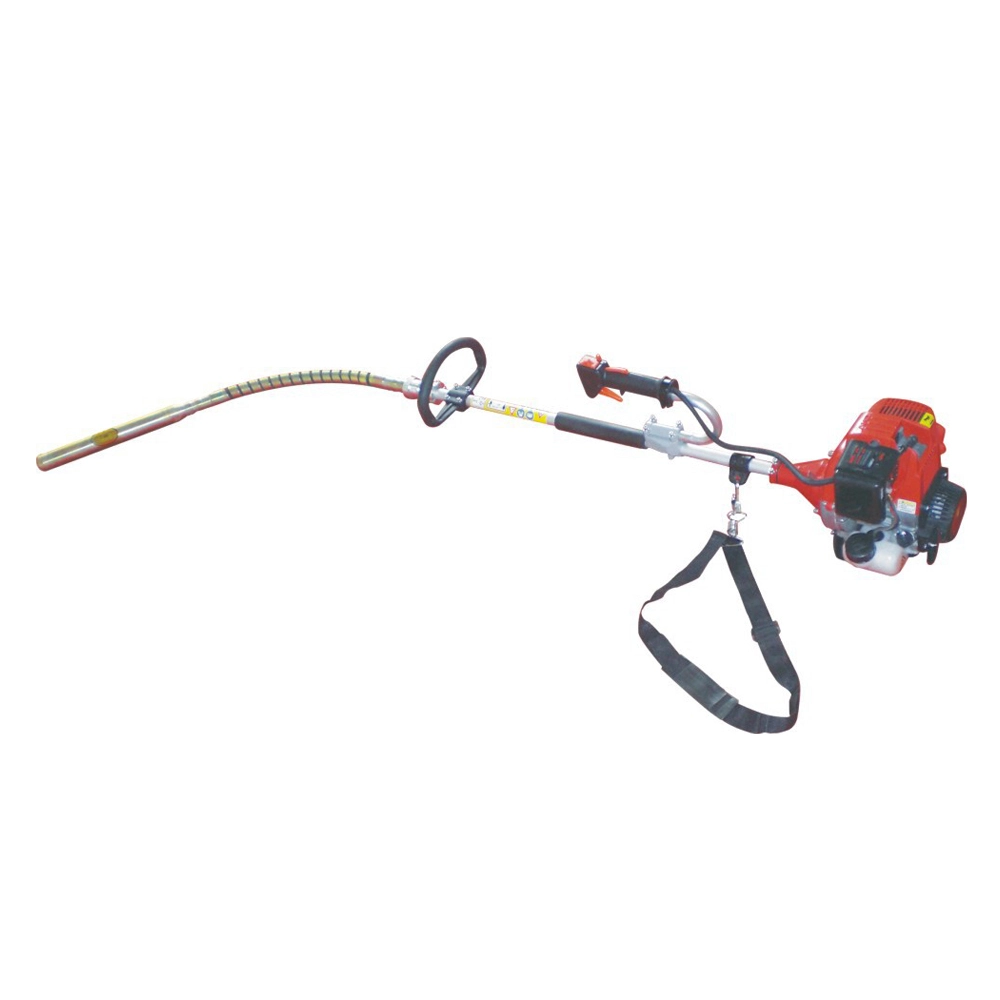

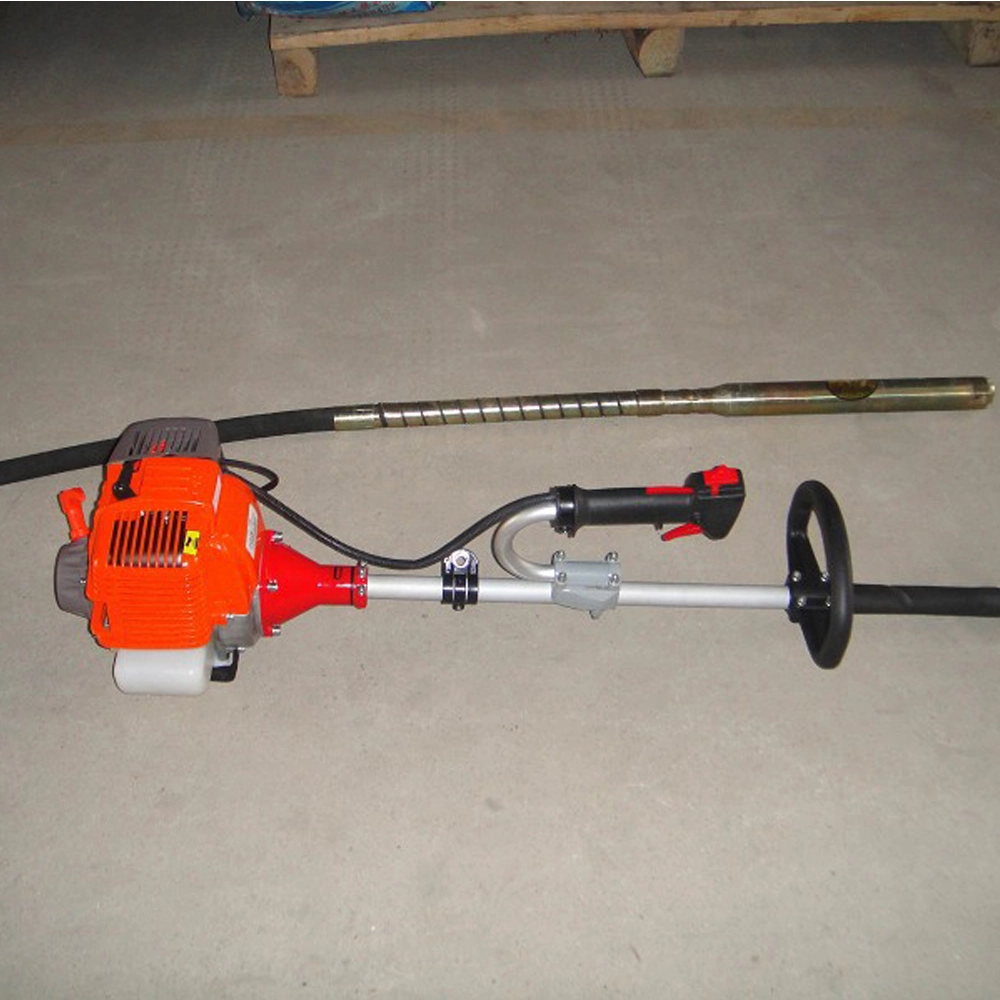

Portable Petrol Vibrator

Minglei portable petrol concrete vibrator is extensively used in modern concrete construction projects, such as bridge decks, culverts, and other hard-to-reach remote concrete sites.Its lightweight and portable design make it perfect for single-person operation.A shoulder strap facilitates easy handling and transport at any job site.Throttle control is conveniently built into the handle.


Providing independent power on-site, it is ideal for vibrating concrete foundations, footings, waffle pod slabs, step patios, driveways, stairs, car parks, and more. The large amplitude and high frequency of the vibrator heads ensure thorough consolidation of concrete. The lightweight, high-tech Honda four-stroke motor offers hassle-free operation, with a vibration frequency of up to 9,000 vibrations per minute.

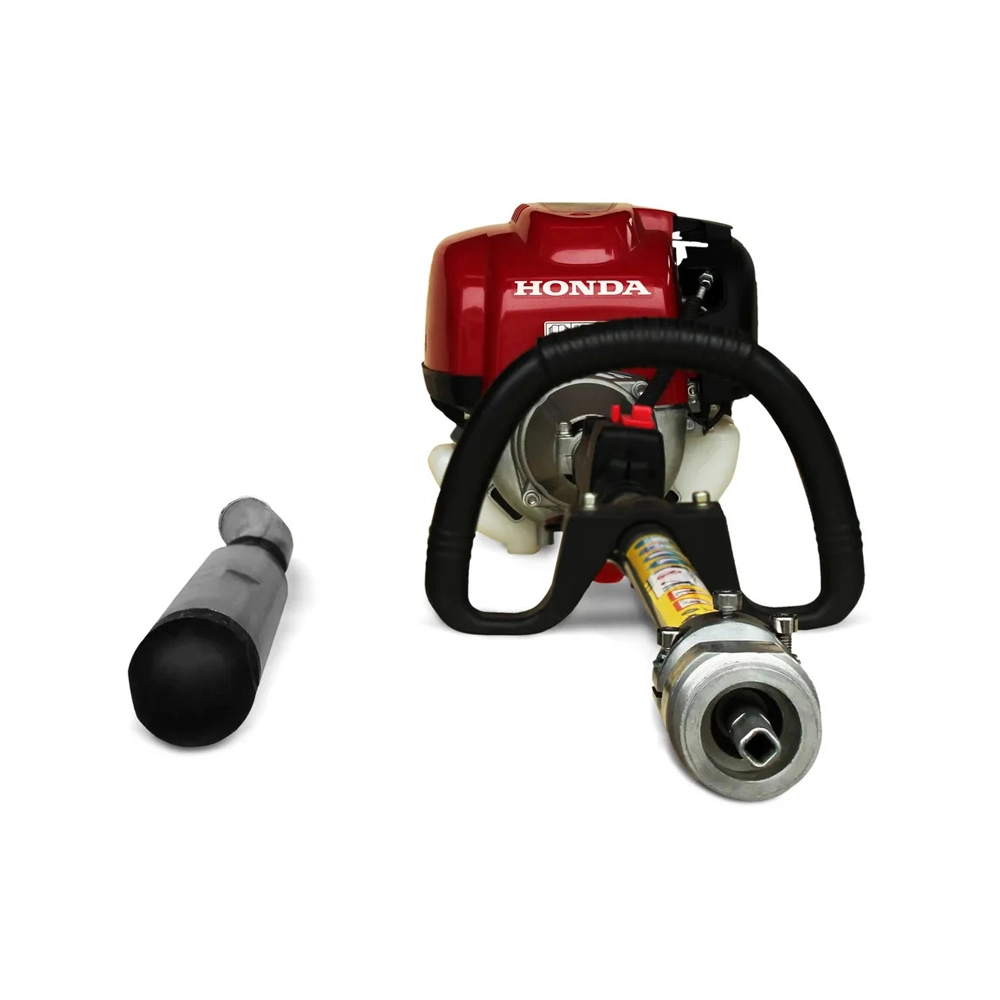

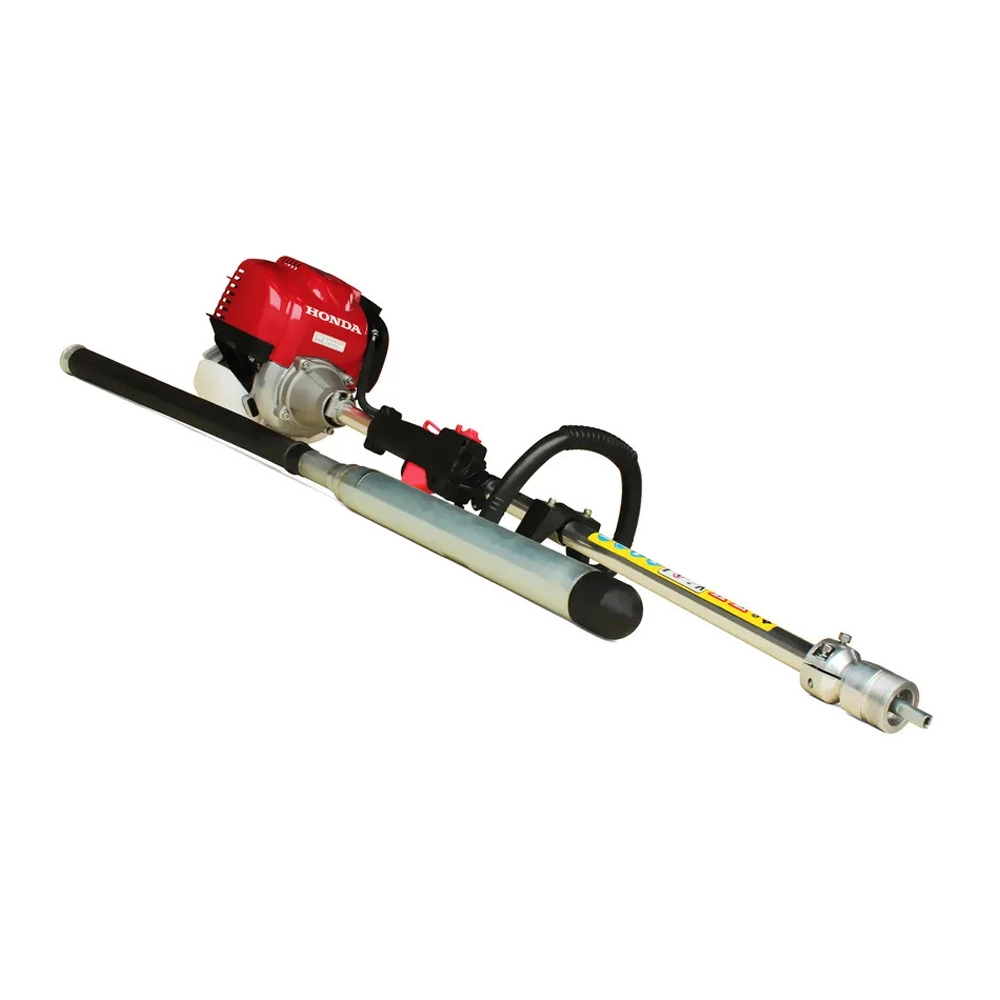

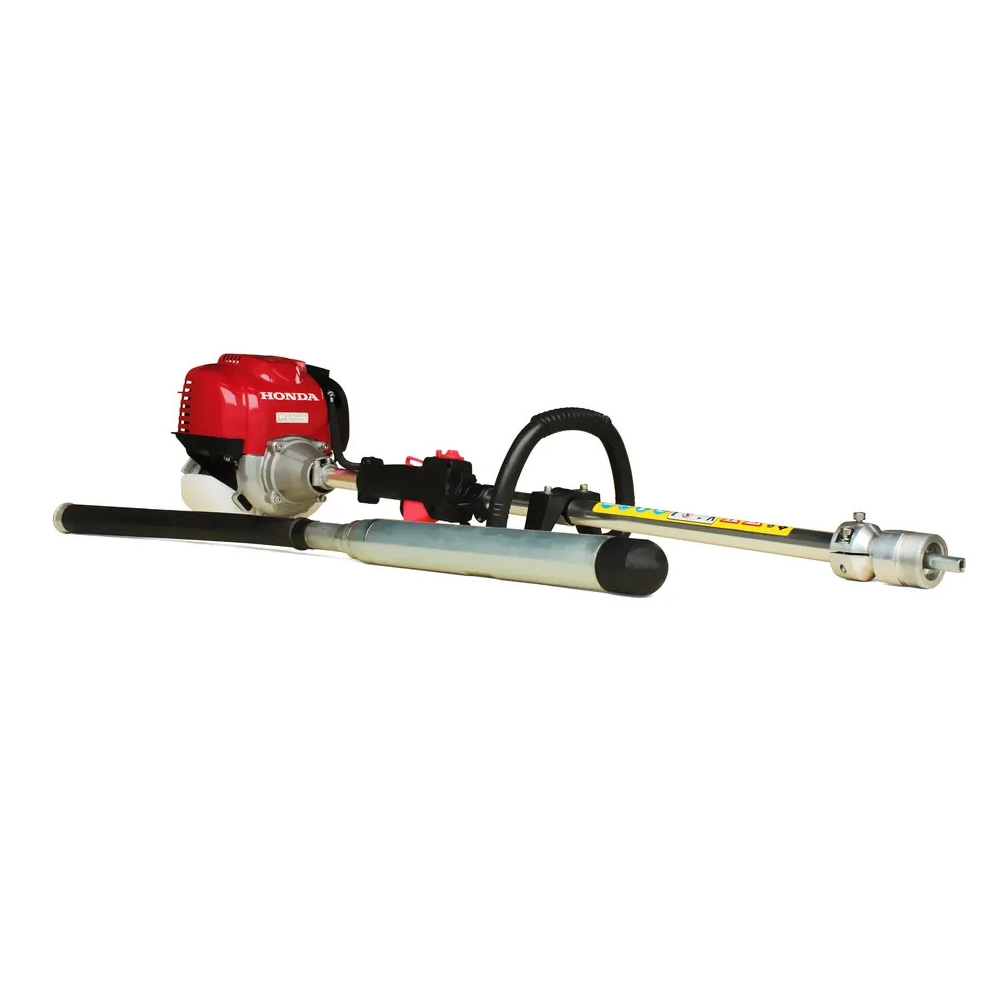

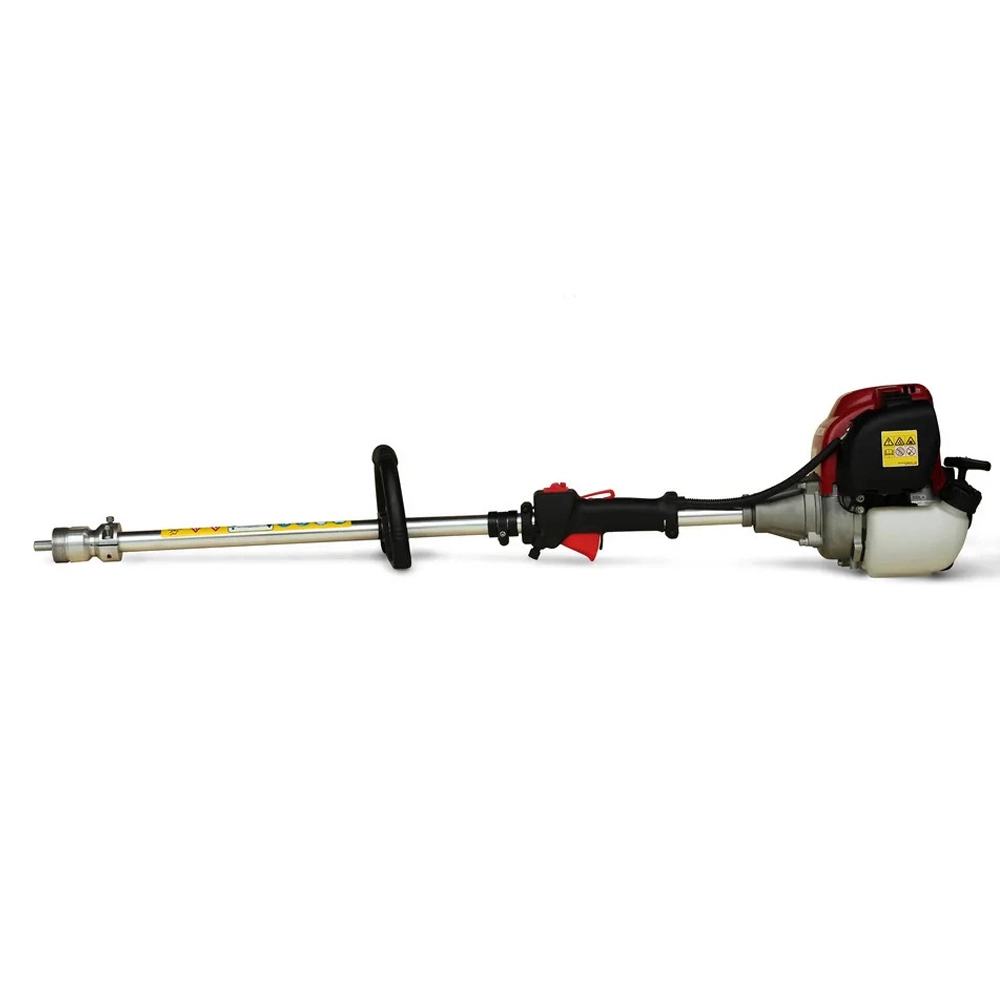

Powered by a Honda GX35 1.5HP 4-stroke petrol engine, it includes a shoulder strap for easy handling and transport at any job site. The throttle control is integrated into the handle, and the handles are fully adjustable. Additionally, it comes with a free 600ml fuel tank.

Products

Specification of Portable Petrol Vibrator

Model

Shaft length

Engine

Power

Rotary speed

Frequency

ML-PV38

1-2.5m

HONDA GX35

1.1kw/1.5hp

6500RPM

9000VPM

ML-PV45

1-2.5m

HONDA GX35

1.1kw/1.5hp

6500RPM

9000VPM
