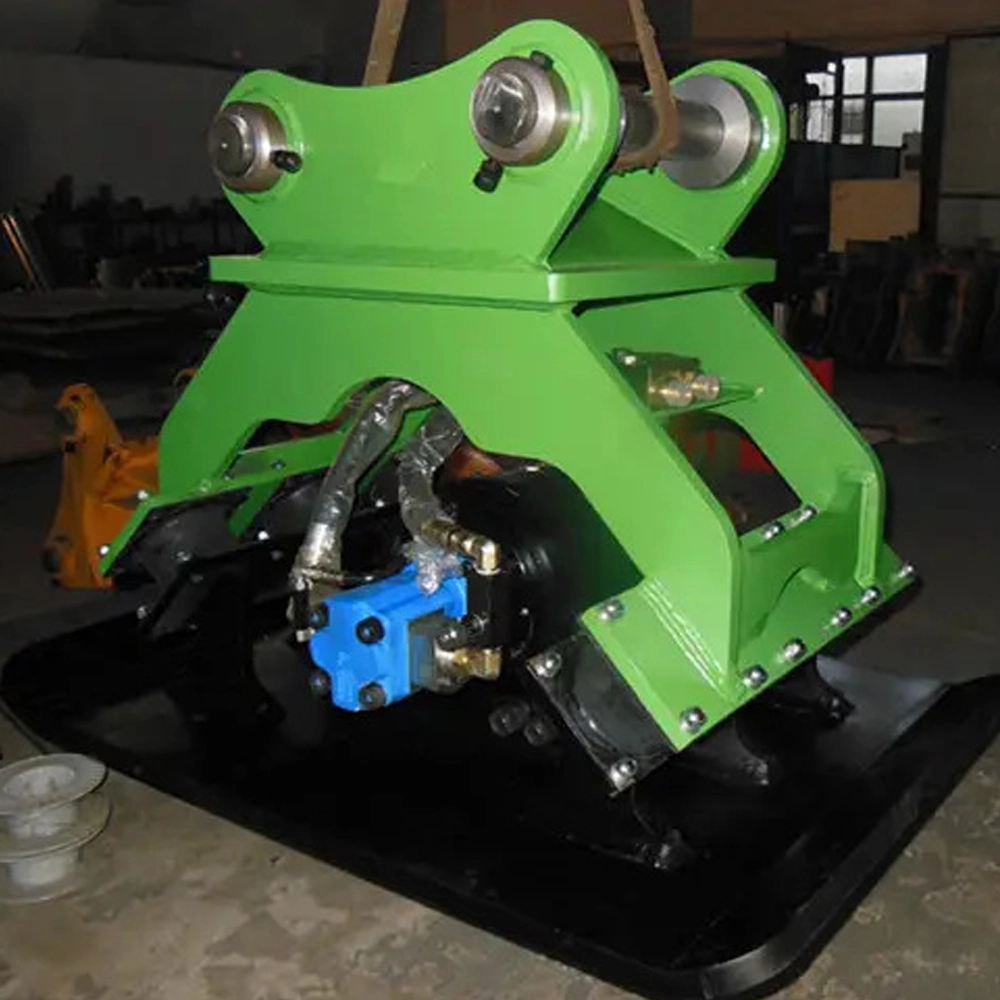

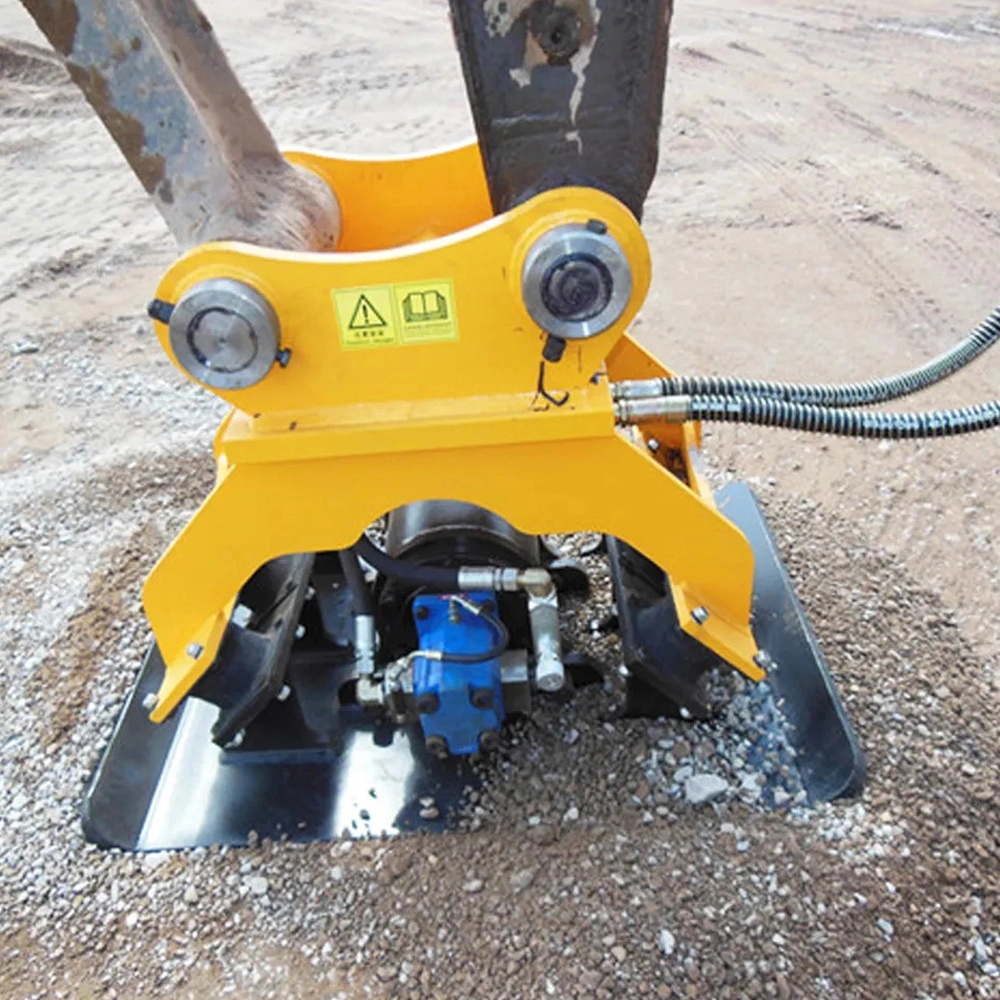

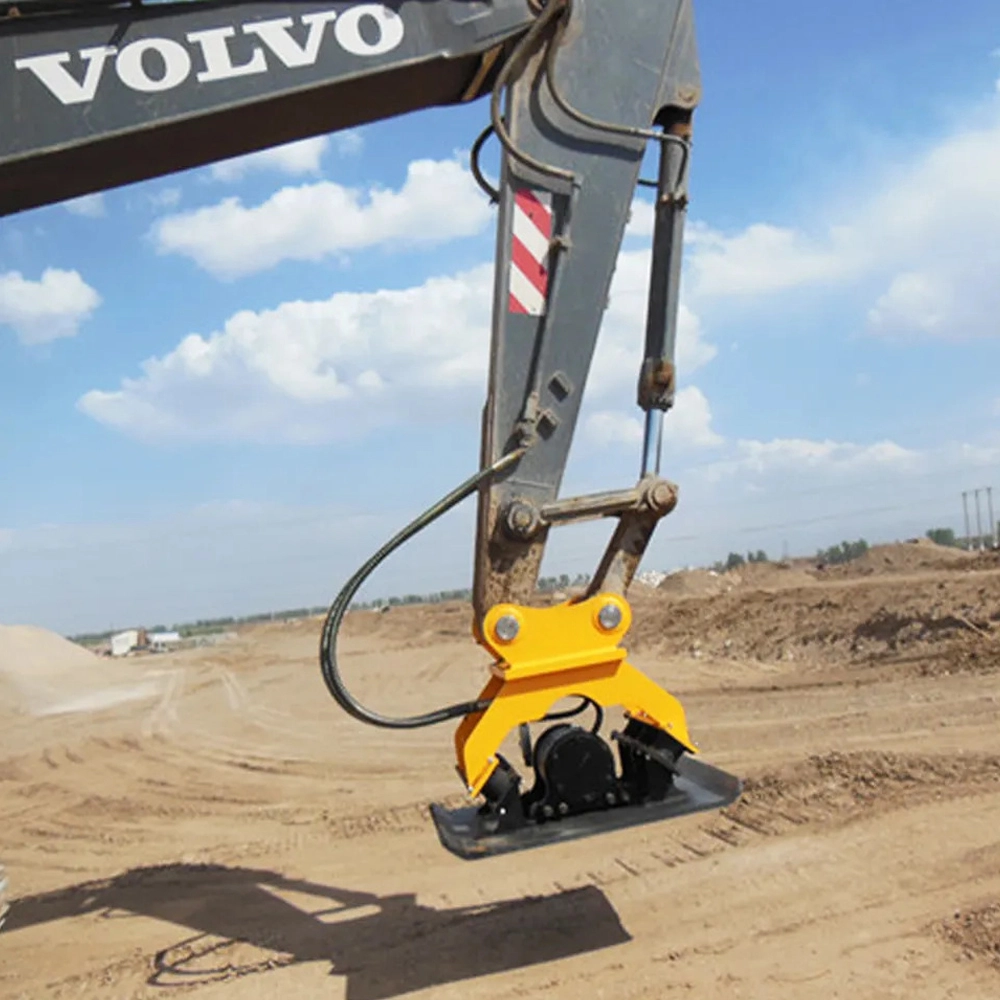

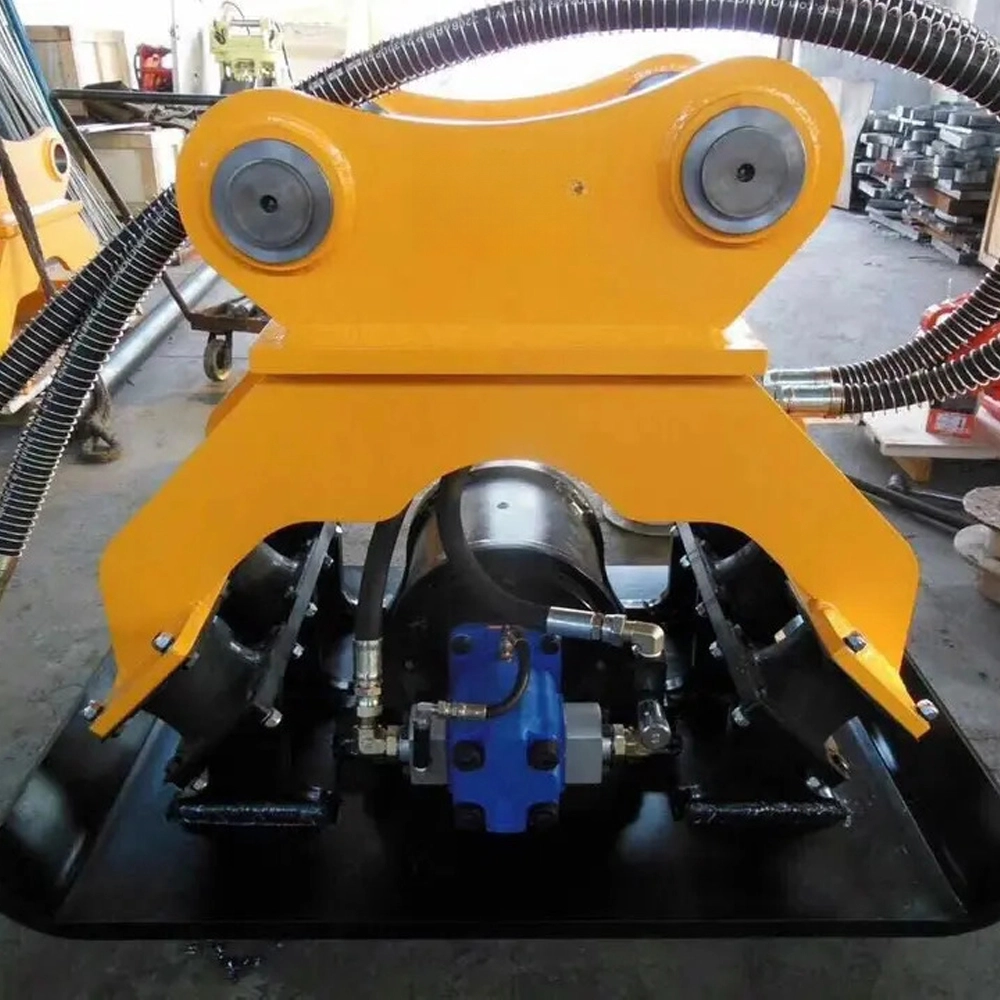

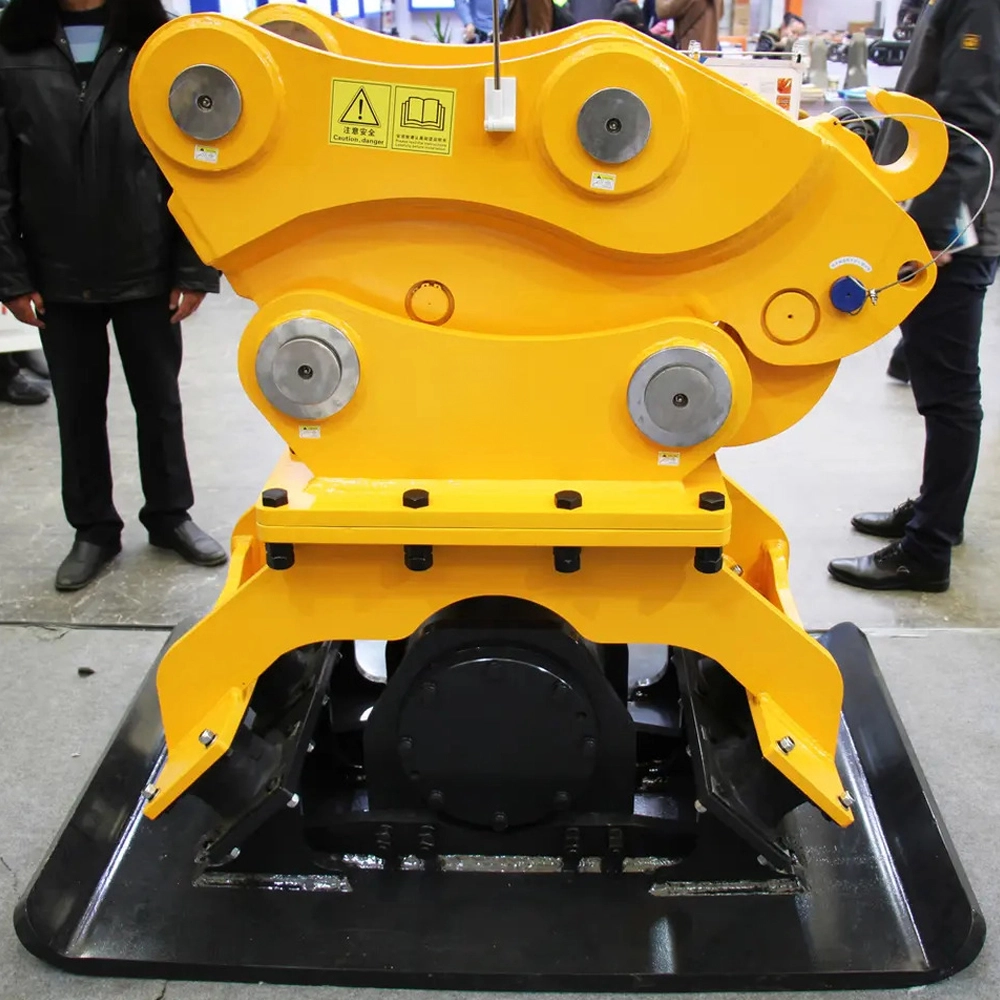

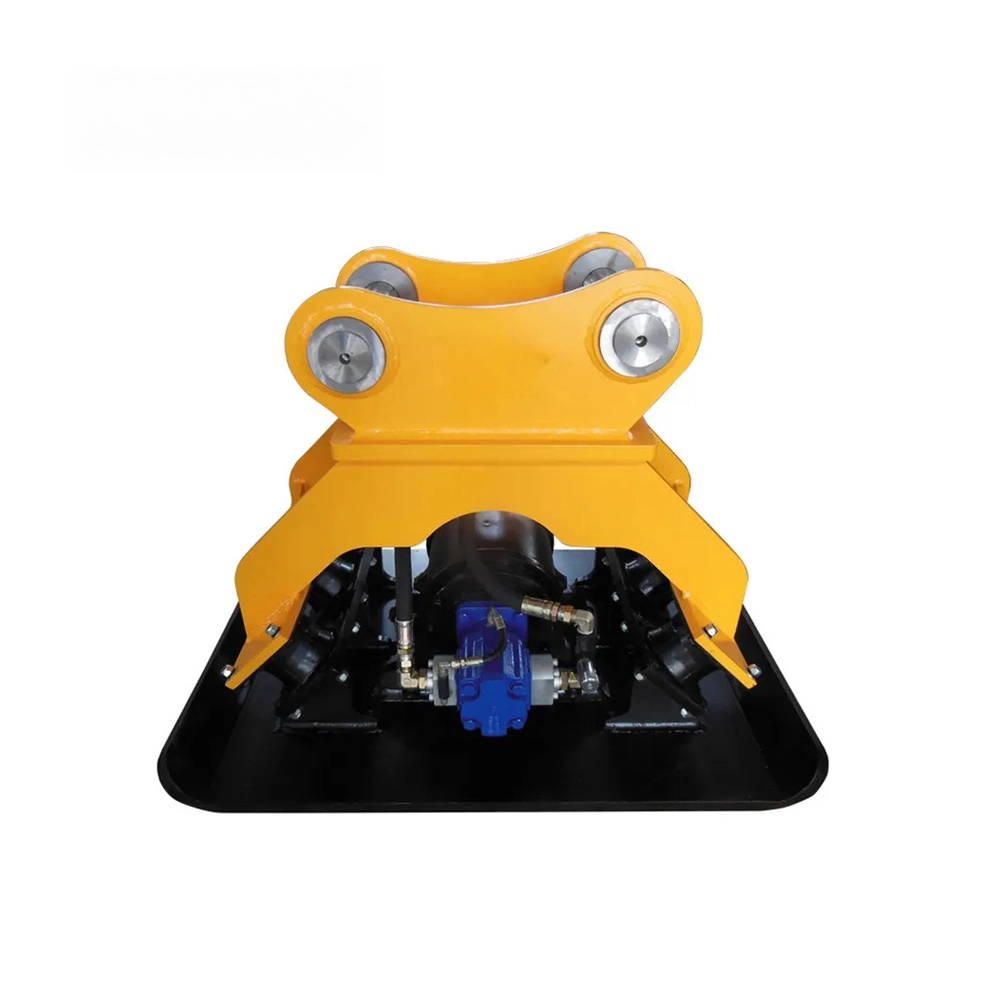

Hydraulic Plate Compactor

Minglei Hydraulic Plate Compactor is a versatile and powerful tool designed for efficient soil compaction in a variety of construction and landscaping applications. Engineered with advanced hydraulic technology, this compactor delivers consistent and high-impact force, ensuring optimal compaction of soil, gravel, and asphalt. Its robust design and durable components provide long-lasting performance, even in the most demanding environments. The compact and user-friendly design allows for easy maneuverability and operation, making it ideal for use in confined spaces and challenging terrains. Whether you're working on road construction, trench compaction, or foundation preparation, our Hydraulic Plate Compactor offers reliable and efficient performance to meet your project needs.

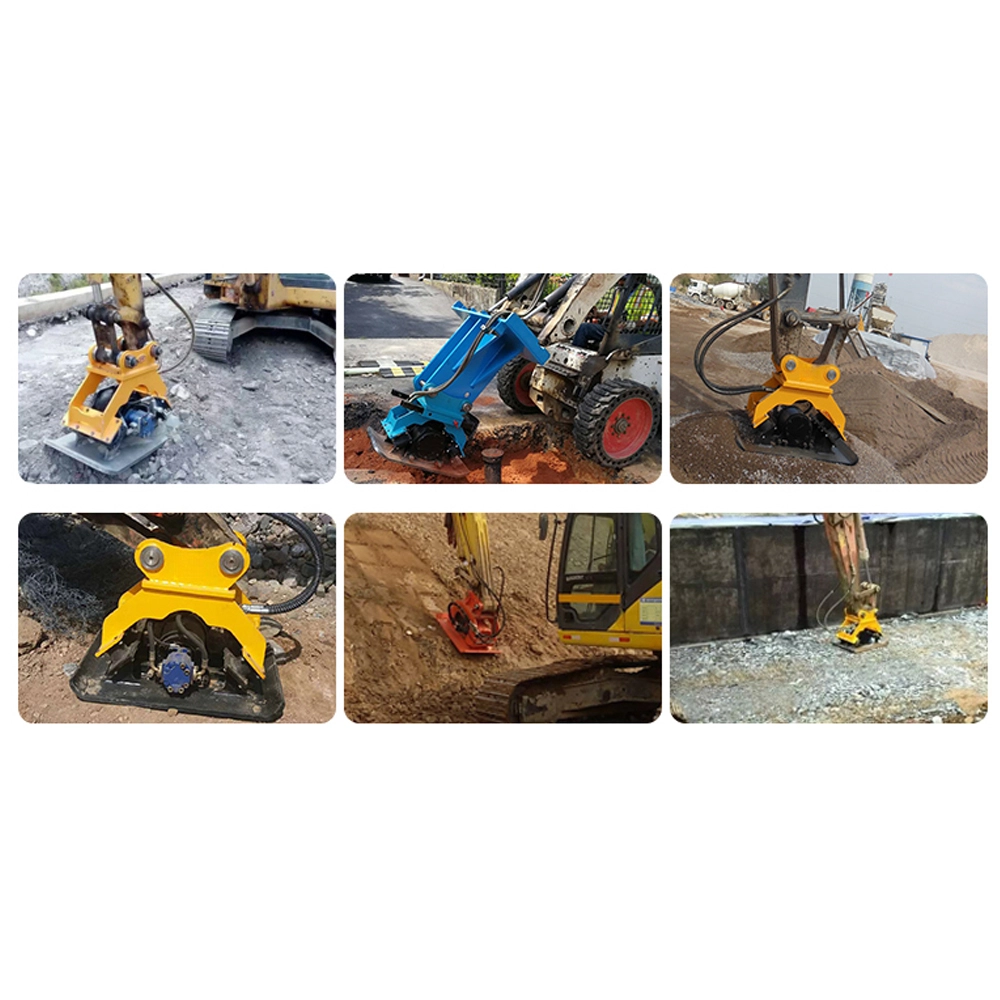

Applicable Objects:

Slope and surface leveling for highways and railways

Ground leveling for construction sites and factory floors


Products

Features of Hydraulic Plate Compactor

  • Equipped with imported bearings, Italian throttle valves, one-way valves, and American safety

  • Valves for stable operation

  • Capable of 360-degree adjustments during compaction

  • Vibration frequency and compaction force are 2-4 times greater than conventional compactors


Specification of Hydraulic Plate Compactor

Model

ML-HP01

ML-HP04

ML-HP06

ML-HP08

ML-HP10

Height

435mm

530mm

650mm

720mm

730mm

Width

442mm

550mm

700mm

900mm

900mm

Impluse force

3ton

4ton

6.5ton

11ton

15ton

Suitable carrier

2-4ton

4-10ton

12-16ton

18-24ton

30-40ton

Weight

200KG

350-500KG

650-800KG

900-100KG

1100-1300KG
