Suzhou Minglei Construction Technology Co.,Ltd.









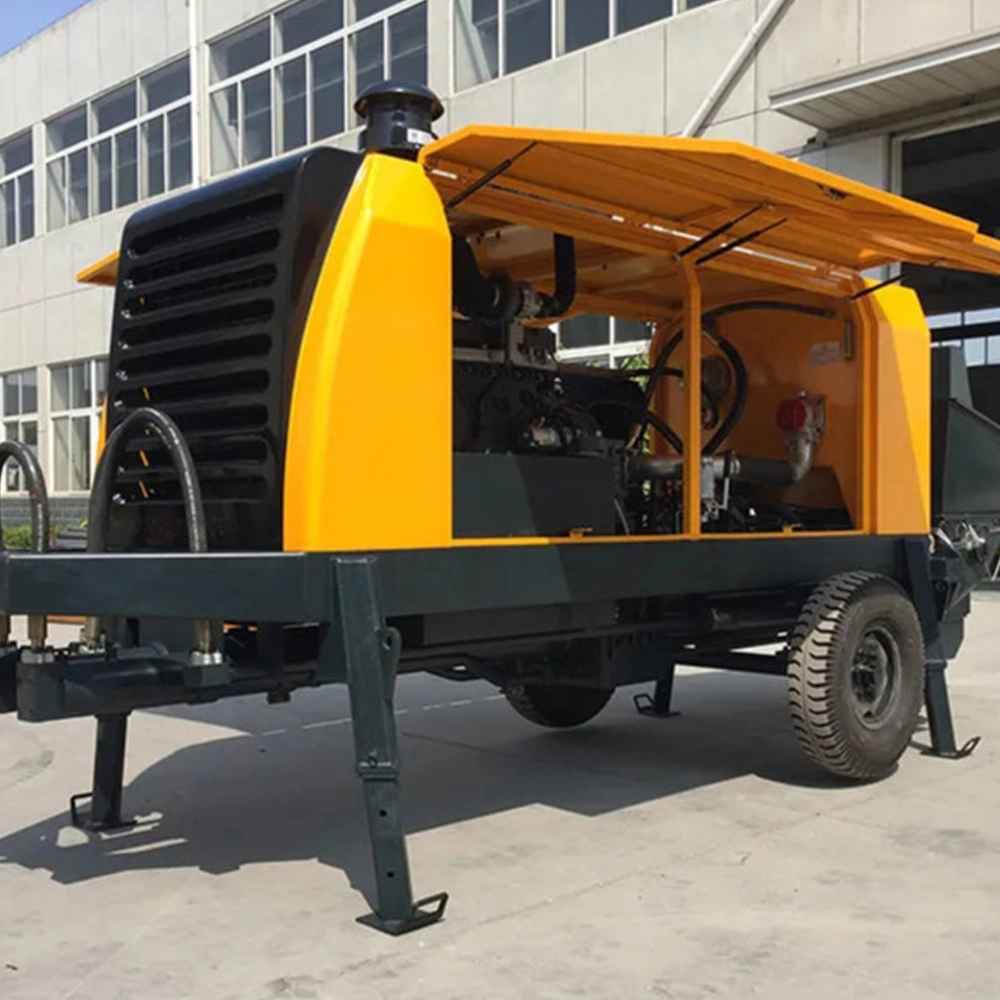

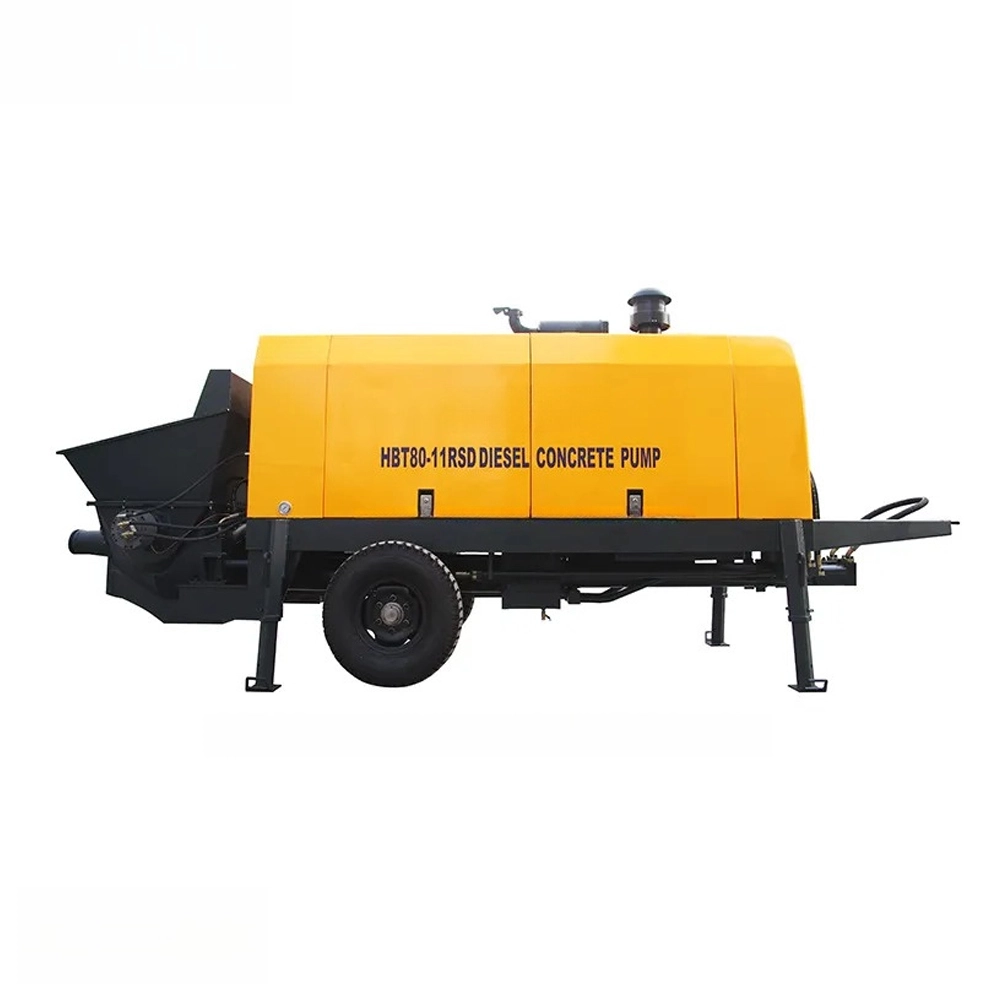

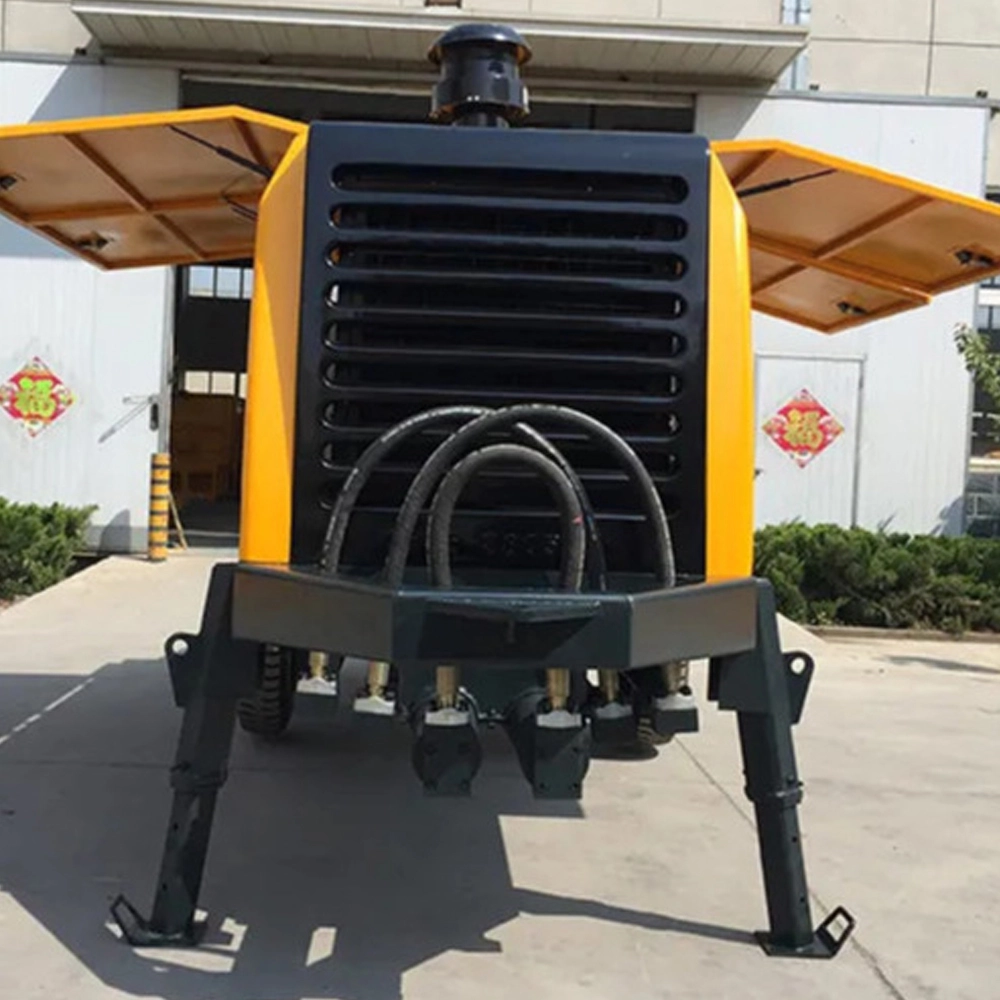

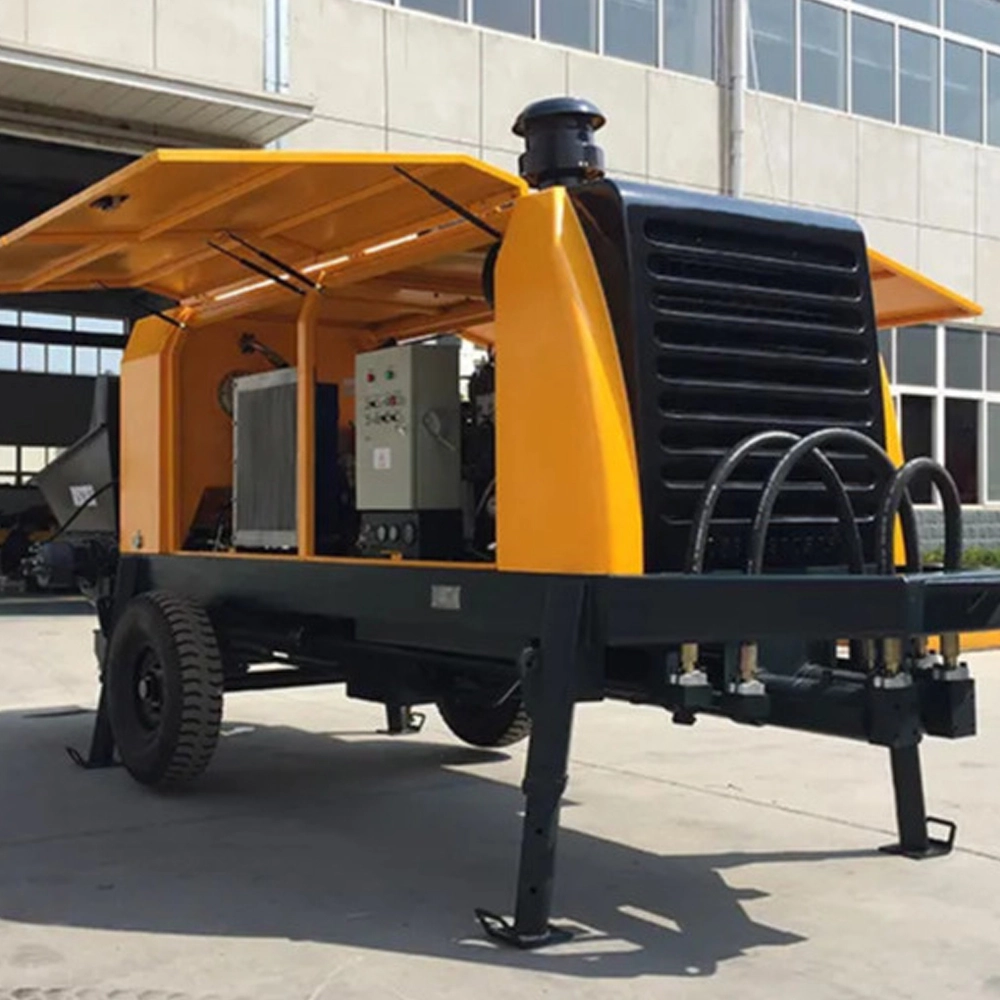

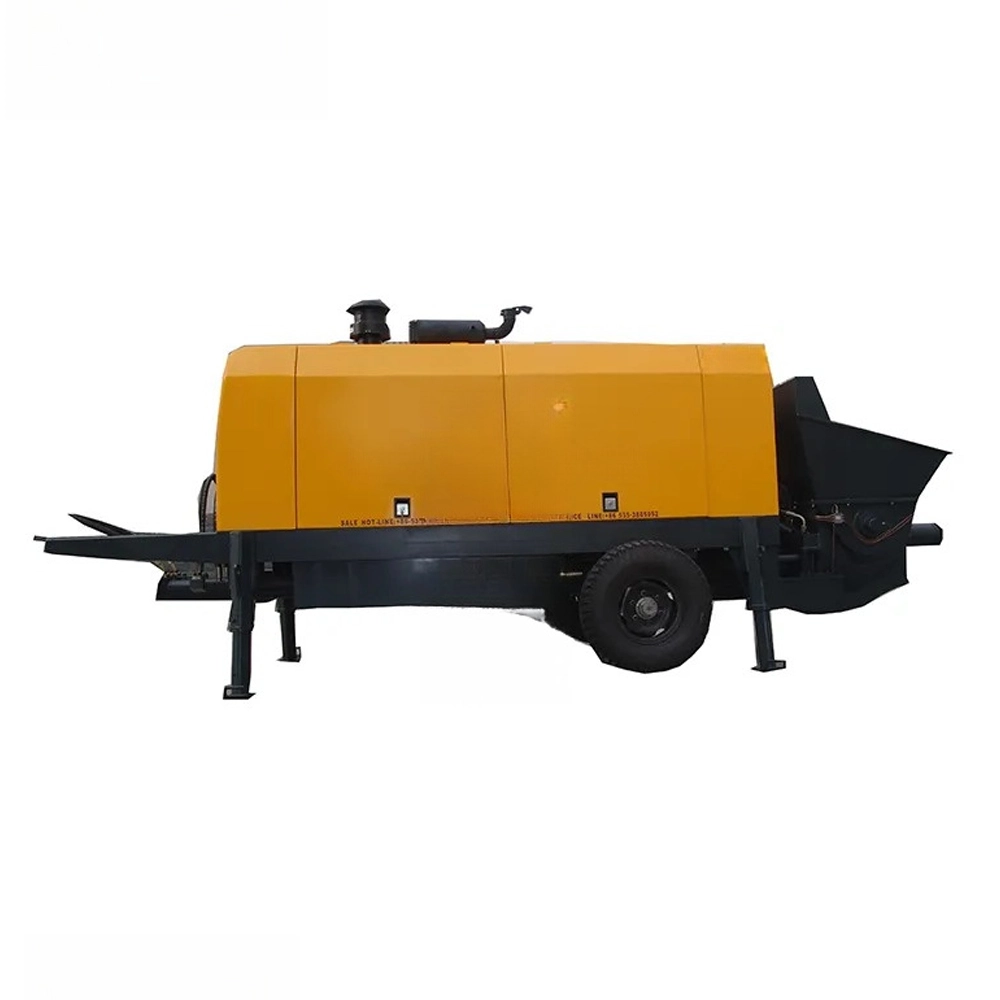

Diesel Engine Concrete Pump

Name: Diesel Engine Concrete Pump
Brand: Suzhou Minglei Construction Technology Co.,Ltd.

Minglei Diesel engine concrete pump is designed to address the needs of remote construction sites with limited power supply. This pump is equipped with a Euro III compliant diesel engine, ensuring it meets stringent emission standards. It is designed to operate under harsh conditions and is suitable for projects such as highways, railways, bridges, tunnels, and mining.

The diesel engine of the pump utilizes "automatic speed adjustment" technology. During operation, sensors monitor the engine's speed and relay this information to the controller. Any variation in pumping pressure results in corresponding changes in the engine's RPM. The controller detects these speed variations and sends signals to the throttle control motor, which automatically adjusts the fuel flow to maintain the engine at optimal speed.

 

Features of Diesel Engine Concrete Pump

An intelligent power control system that automatically adjusts engine speed for smooth and efficient operation.
A plunger pump with constant power to ensure the main engine operates efficiently.
A well-sealed S-valve equipped with a floating wear-resistant ring.
High-quality wear-resistant alloy components for extended service life.
High delivery pressure to meet the demands of high-rise and long-distance projects.
An air cooling system that operates independently of external water sources.
A PLC system to ensure optimal control performance.
A re-pumping function to facilitate smoother construction and better accessibility.
Equipped with a wired remote controller for easy operation.

Specification of Diesel Engine Concrete Pump

Item Model		HBT20-10RSD	HBT30-10RSD	HBT40-11RSD	HBT60-11RSD	HBT80-11RSD
Delivery pressure (MPa)	HP	10	10	11	9.3	11
Delivery pressure (MPa)	LP	5.5	5.5	5.3	4.7	6.4
Output (m3/h)	HP	12	16	23	27	48
Output (m3/h)	LP	21	30	48	55	80
Max convey distance (m)	Horizon	350	350	400	350	400
Max convey distance (m)	Vertical	130	130	150	130	150
Motor power(kw)		40	46	66	112	161
