Suzhou Minglei Construction Technology Co.,Ltd.









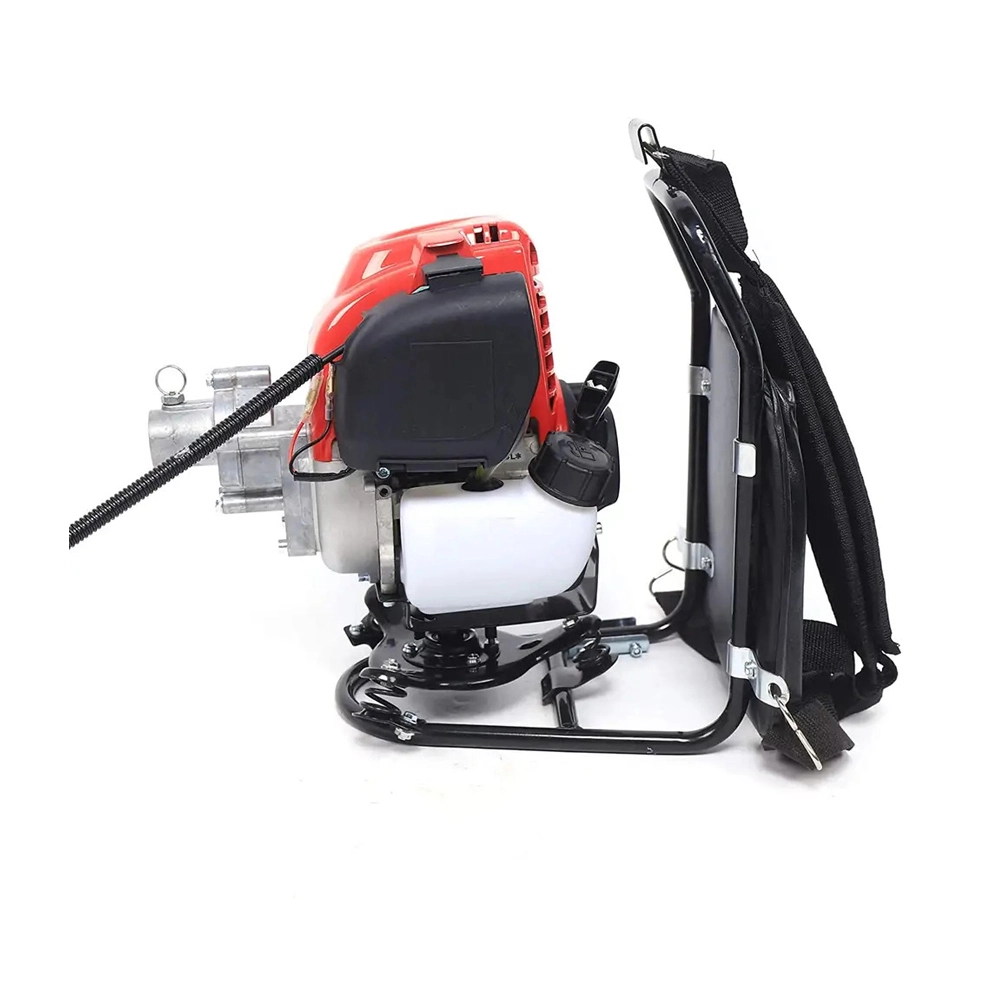

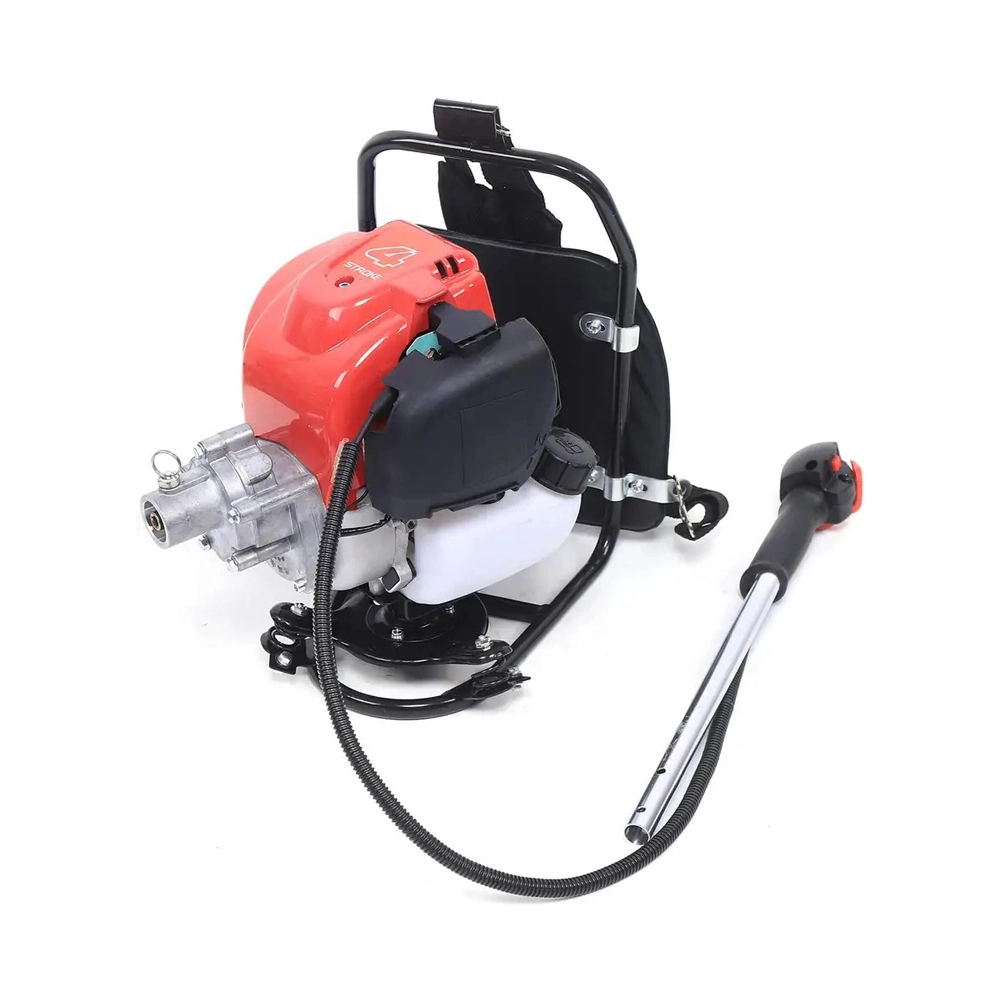

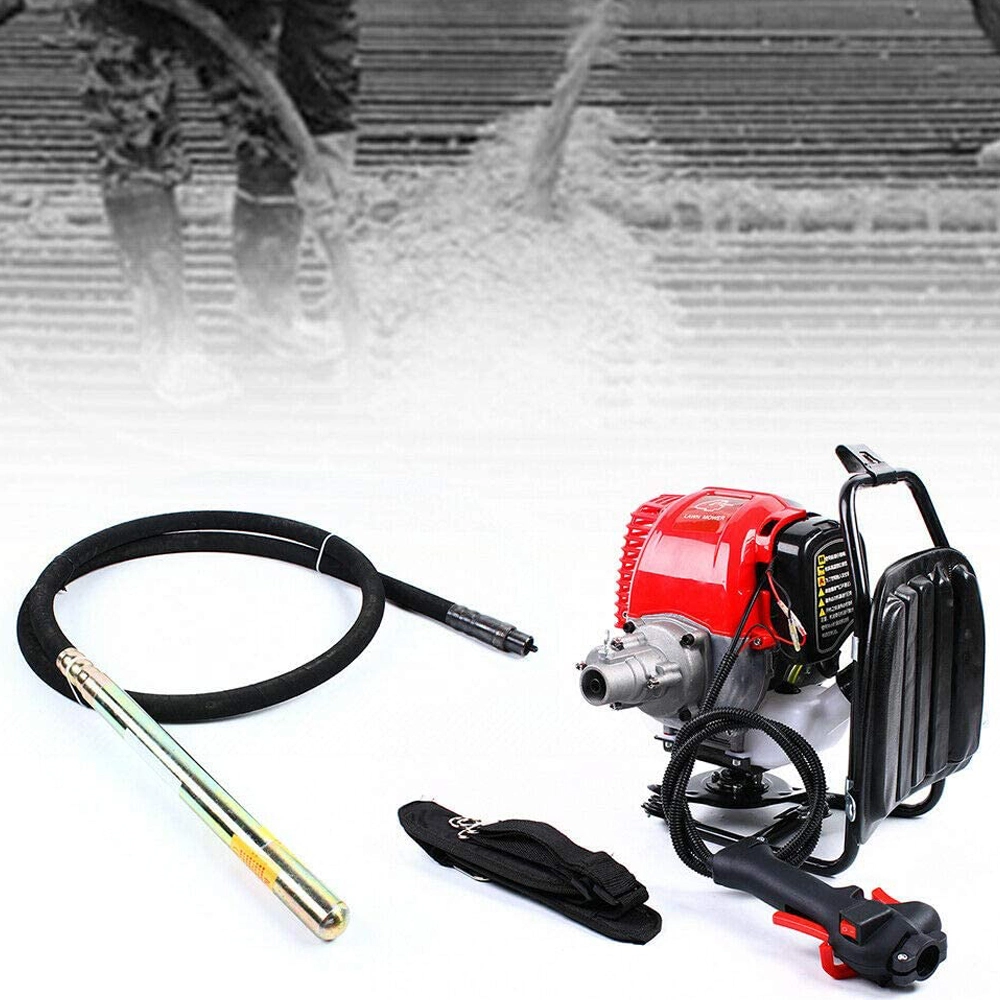

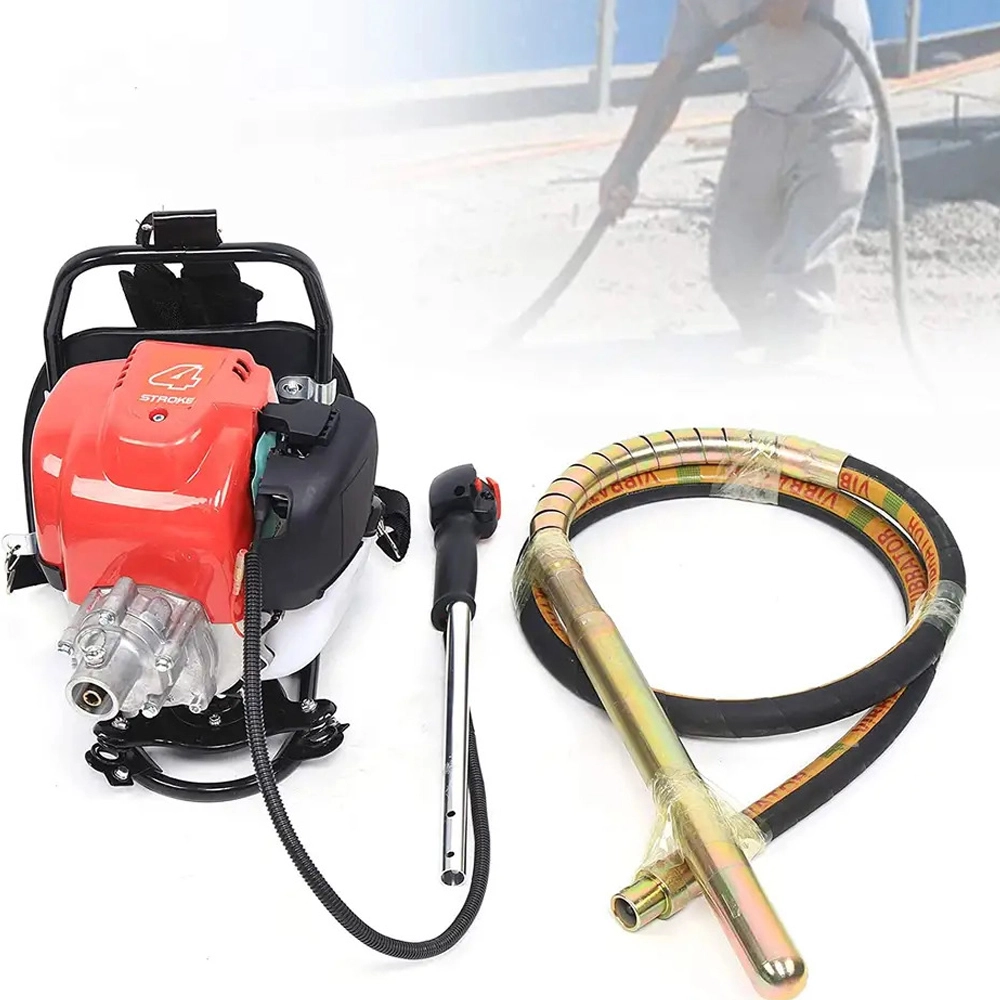

Backpack Concrete Vibrator

Name: Backpack Concrete Vibrator
Brand: Suzhou Minglei Construction Technology Co.,Ltd.

Minglei portable backpack concrete vibrator is extensively utilized across various sectors, including construction, transportation, water conservancy, ports, mining, and metallurgy. Its versatility allows it to adapt to a wide range of applications. The vibrator head and shaft are designed for easy combination and quick replacement, ensuring that the equipment can be efficiently tailored to meet the specific demands of any job. This adaptability makes it an indispensable tool for professionals seeking reliable and efficient concrete vibration solutions in diverse working environments.

 

Features of Backpack Concrete Vibrator

Powered by a 4-stroke Honda engine, it operates with low noise and emissions, eliminating the need for an oil/gasoline mixture.
Optimal frequency effectively removes air and voids from the concrete mix.
Swivel-designed engine base accommodates both right- and left-handed users.

Specification of Backpack Concrete Vibrator

Model	ML-CV28	ML-CV32	ML-CV38	ML-CV45
Vibrator Head Dia x Length (mm)	28*350	32*370	38*390	45*390
Vibrating frequency (VPM)	12000-17000	12000-17000	12000-17000	12000-17000
Rotate speed (RPM)	9500-14000	9500-14000	9500-14000	9500-14000
Flexible hose Dia (mm)	30	30	30	30
Flexible shaft Dia (mm)	10	10	10	10
Length (m)	1-3	1-3	1-3	1-3
Motor	HONDAGX35	HONDAGX35	HONDAGX35	HONDAGX35
